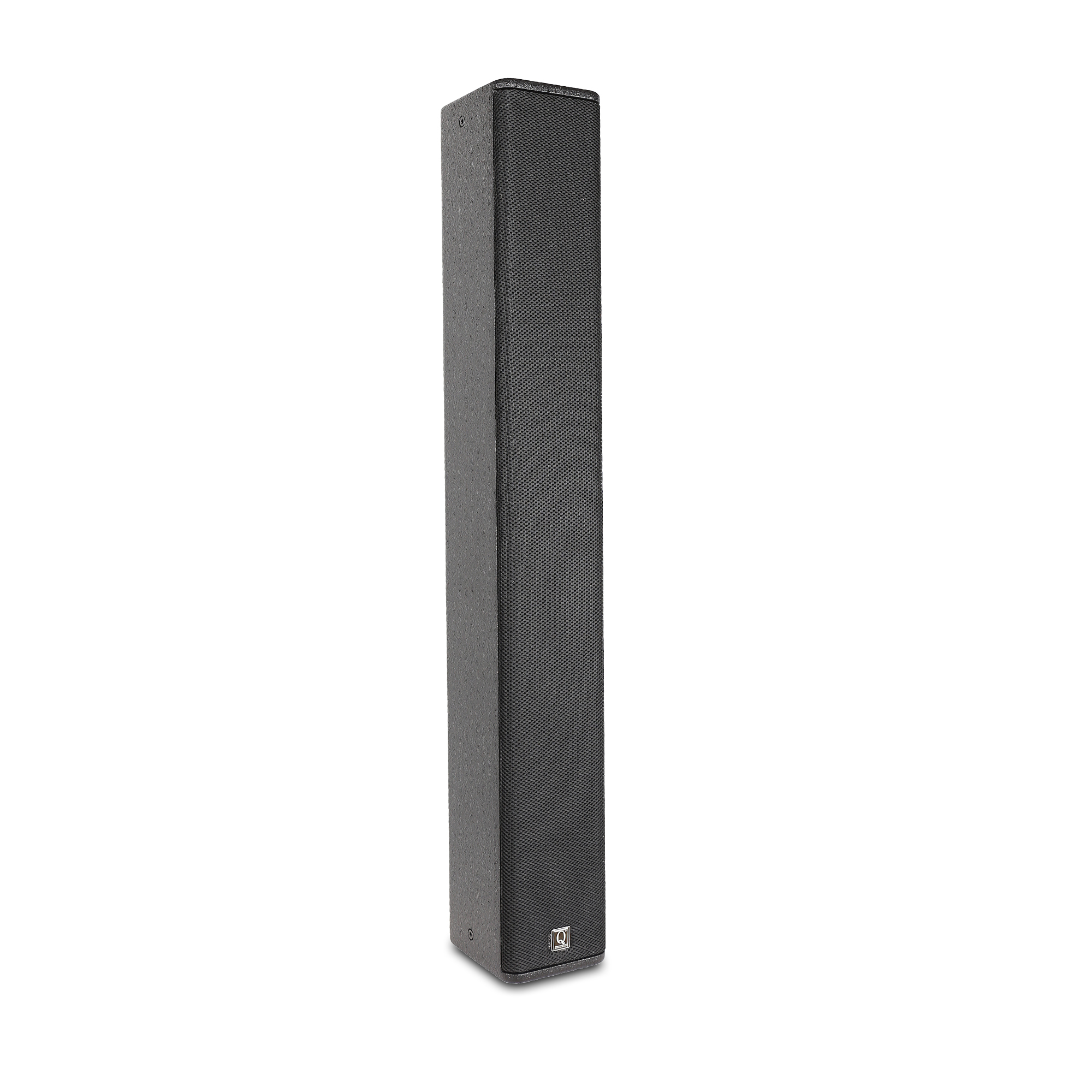

Type |
Columnar source |
Frequency Response(Preset) |
125Hz-17kHz(-6dB) |
Frequency Response(Preset) |
100Hz-20kHz(-10dB) |
Horizontal |
90°(-6dB) |
Vertical |
5°-25°(-6dB) |
Drivers |
LF:8×4"(Ferrite) |
Handling Power (AES) |
LF:320W |
Maximum Peak SPL |
132dB/1m |
Nominal Impedance |
LF:4Ω |

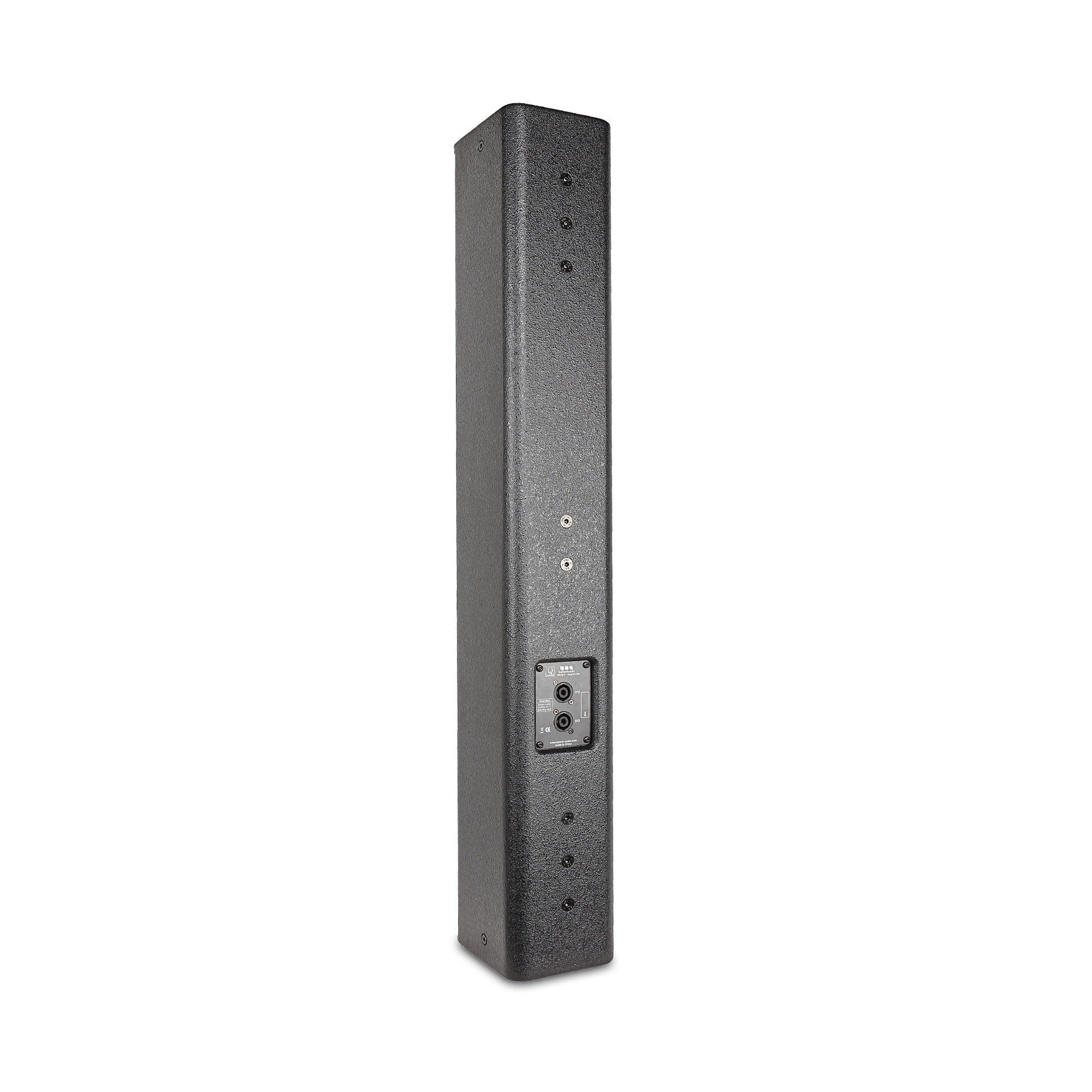

Connections |
2 x NL4 SpeakOn |
Pin Connections |
NL4=LF:+1-1 |
Height Front |
1000mm |
Height Back |
1000mm |
Width |
135mm |
Depth |
160mm |
Weight |
14kg / 30.8Ib |
Rigging and Handling |
|
Threaded |
8x M8 threaded insert |
Threaded |
4x M6 threaded insert |
Pole socket |
1x 35mm Pole socket |
Physical Data |
|
Material |
Baltic Birch Plywood |
Finish |
Black |
Front |
Polyester powder-coated steel grill |
Rigging |
Steel |
Protection rating |
IP45 |
