VDA18 | 5" TFT-Touch screen 4in 4out DSP 24bit 96k Sample rate Output stereo mode 8Ω 1800W*4ch Output stereo mode 4Ω 3600W*4ch Output stereo mode 2.7Ω 4000W*4ch Main Power Supply:90V～270V，50Hz/60Hz，32APowerCon Dimensions（W*H*D）：483mm*88mm*460mm Weight :17kg/37.5lbs |
 |
V-Panel | 4 x Analog IN XLR3 female 4 x Analog LINK XLR3 male 3 x AES/EBU IN XLR3 female 3 x AES/EBU LINK XLR3 male 2 x RJ45 etherCON |
 |
V-PowerII | 2U / 19 "I / O power supply, compatible with VDA-Rack / C15 -Rack power supply, automatically balance the number of VDA18 per phase. It has three-phase NEMA l21-30p input (US mode) and 400V power supply (EU mode) with 32A socket. Either US mode or EU mode, the power switch is allowed to operate. Two universal sockets and PowerCon 20A sockets can also be used for auxiliary power supply. Each switch is matched with a circuit breaker, and three LED displays help to monitor the presence of each phase in the front end of the power circuit. |
 |

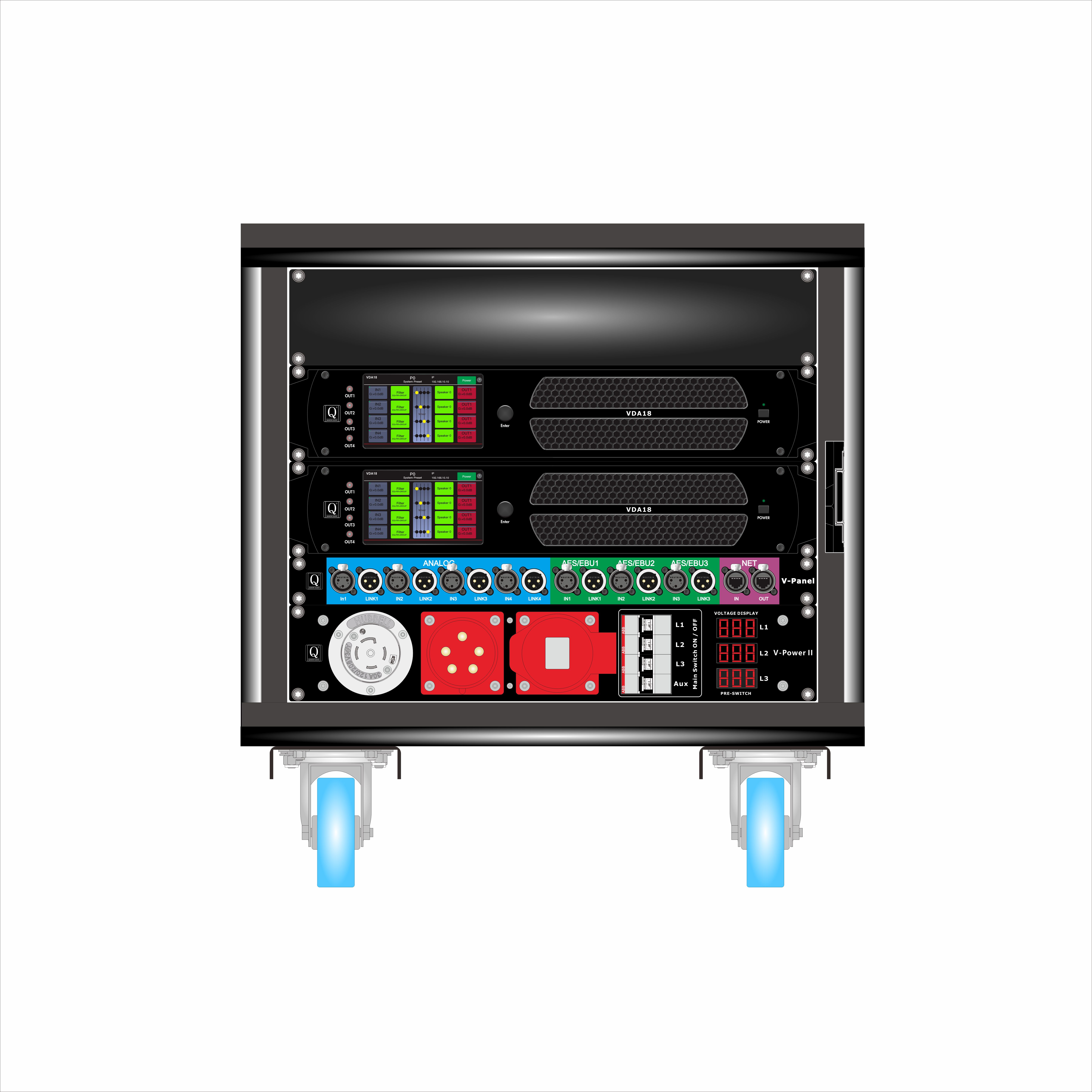

9U-Rack | The 9U Rack is a dual structure consisting of rubber shock absorbers, and the internal steel frame is supported by an external aluminum frame. This ensures that both front and rear doors are retractable to provide maximum protection and transport of electronic equipment within the rack. |
 |
1U/2U Panel | Fill in unoccupied space |
 |
Analog XLR Signal Cables | 4 x 1meter Analog XLR Cables 8 x 0.5meter Analog XLR Cables |
 |
AES/EBU XLR Signal Cables | 3 x 1meter AES/EBU XLR Cables |
 |
Cat6e Network Cables | 2 x 1meter Cat6e Network Cables 2 x 0.5meter Cat6e Network Cables |
 |
32A 5P Power Plug | Male / Female |
