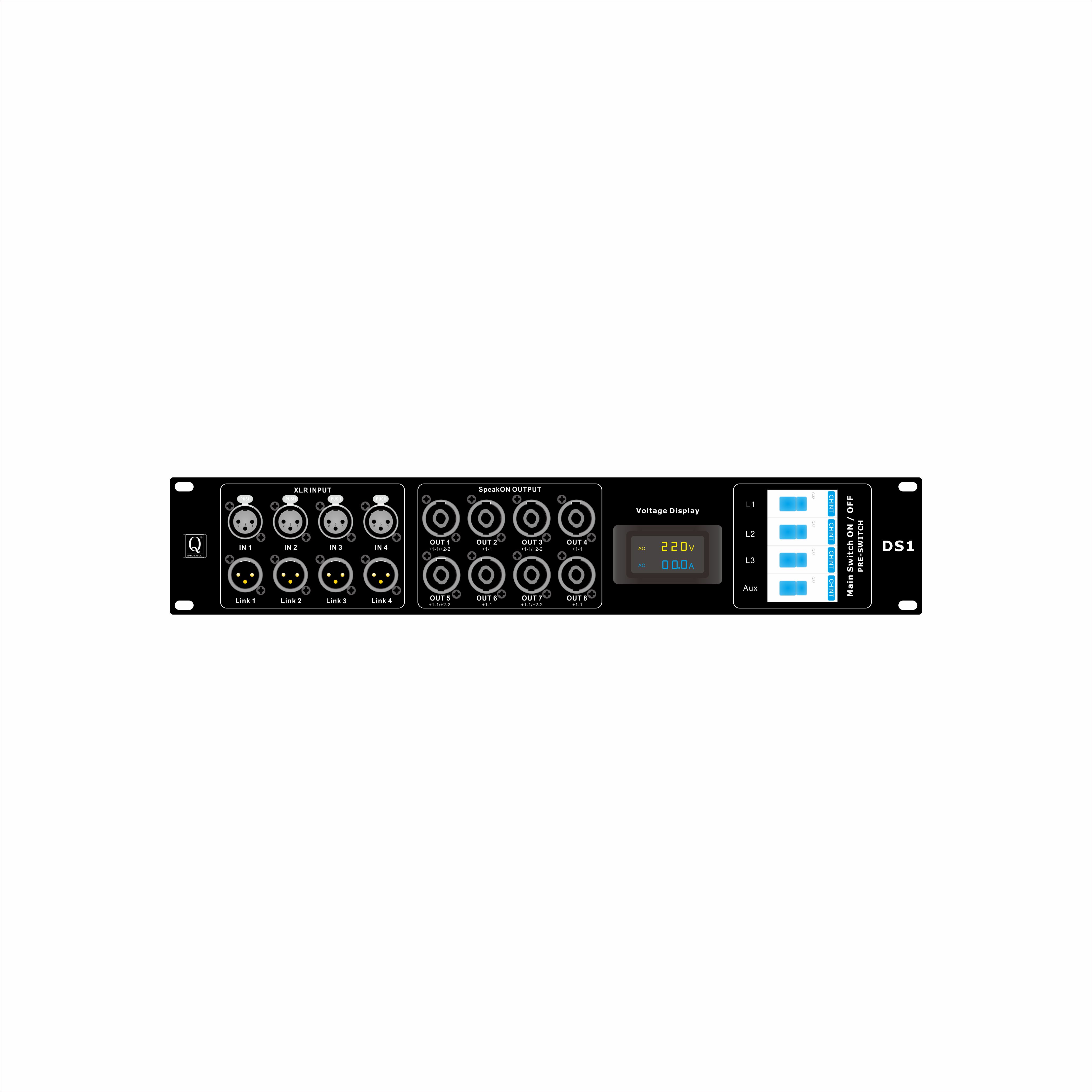

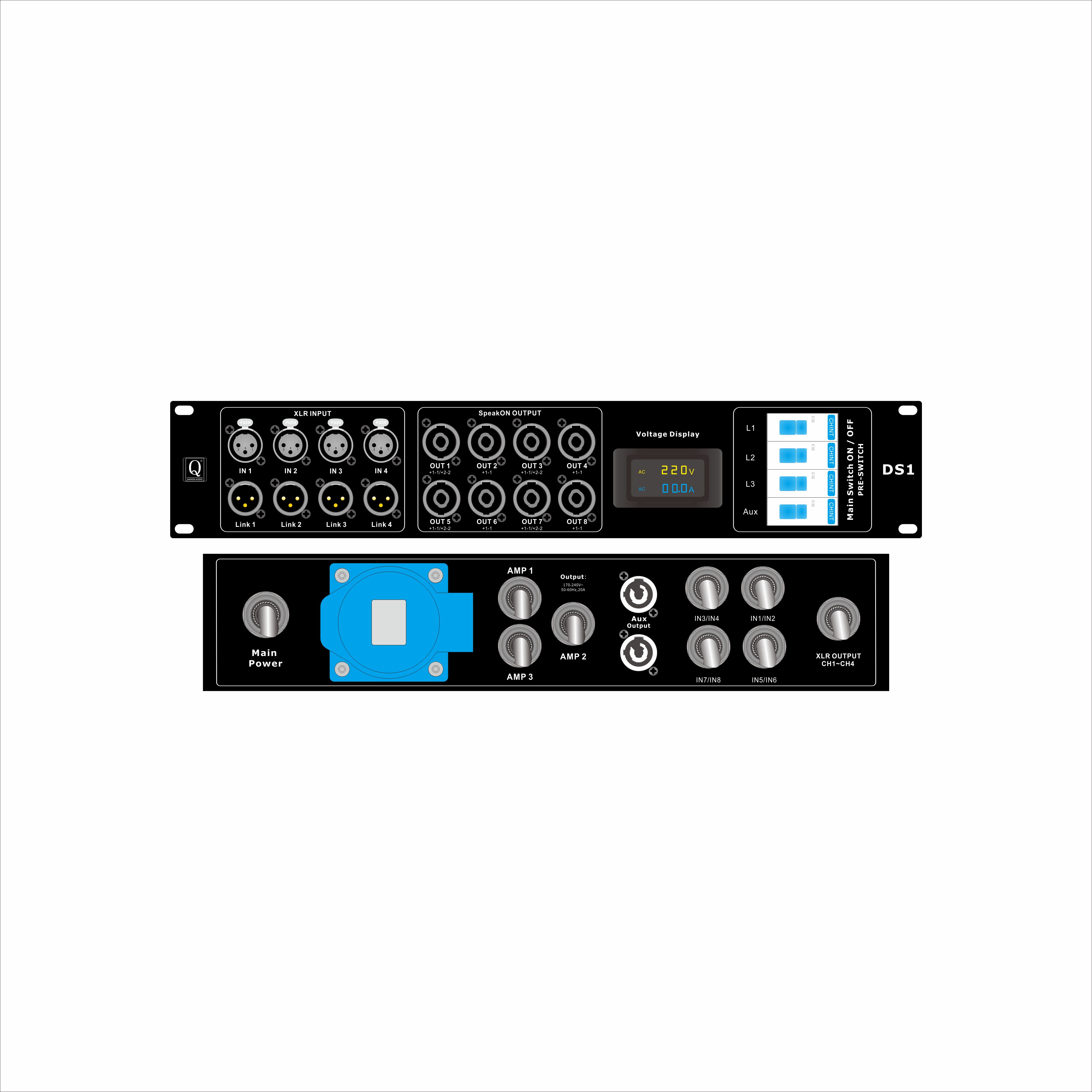

| Front connectors | |
| Main power Input | AC~220V 32A 3-Pin(L+N+G) |
| Analog Input | 4 x female Neutrik® XLR3 (IN) |
| Analog Link | 4 x male Neutrik® XLR3 (Link) |
| SpeakOn NL4 Output | 2 x Neutrik® NL4 (+1-1/+2-2) |
| SpeakOn NL4 Output | 4 x Neutrik® NL4 (+1-1) |
| Display | Voltage / Current |
| Power switch | 16A x2 |
| Switch | ON/OFF |

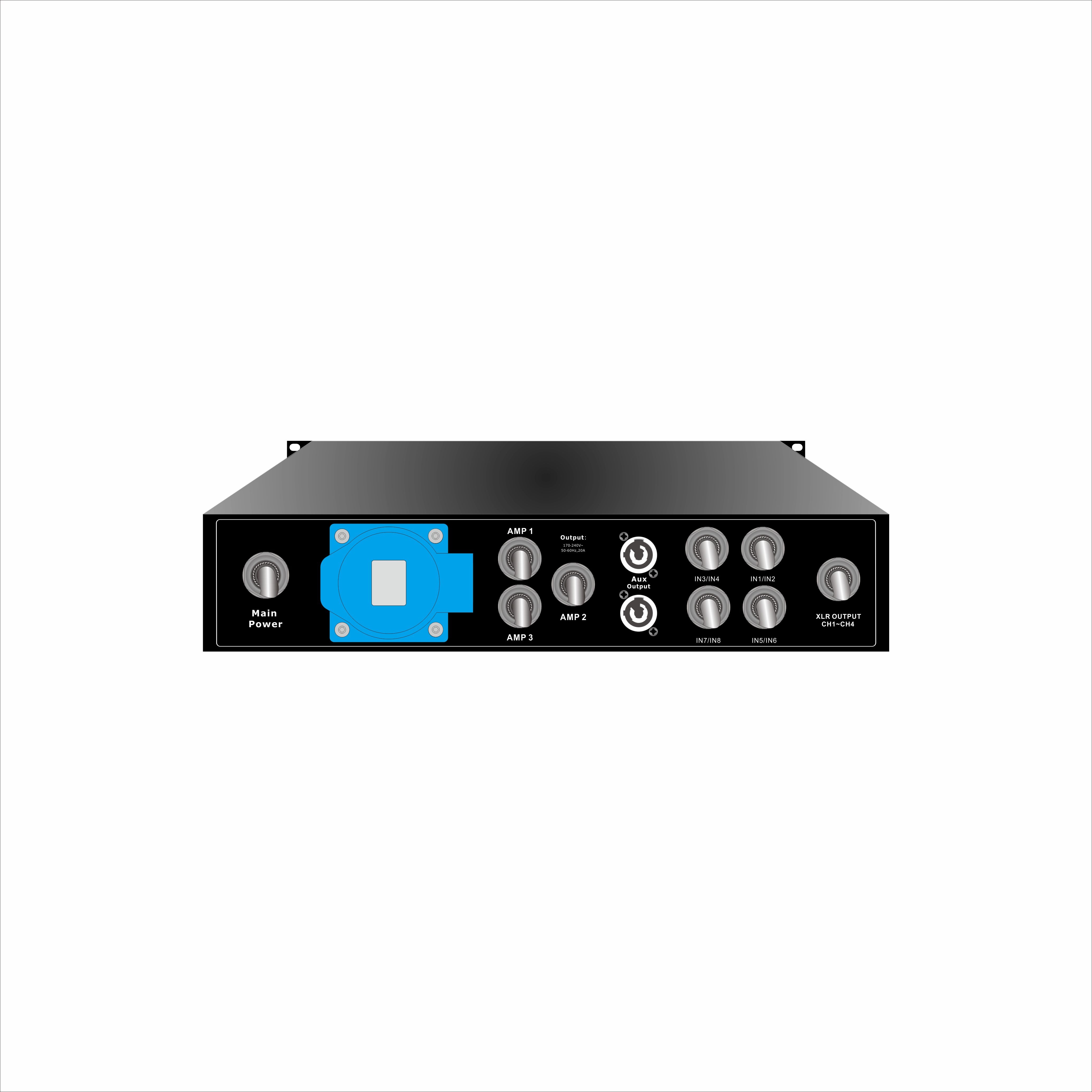

| Rear connectors | |
| Main power Output | AC~220V 32A 3-Pin(L+N+G) |
| Analog Output | 4 x male Neutrik® XLR3 (OUT) |
| SpeakOn NL4 Intput | 2 x Neutrik® NL4 (+1-1/+2-2) |
| SpeakOn NL4 Intput | 4 x Neutrik® NL4 (+1-1) |
| Power supply | 2 x 20A power outlets |
| Auxiliary power supply | 2 x 20A PowerCon |
| Physical data | |
| Dimensions（W x H x D） | 483 x 88 x 250 mm |
| Material | Metal |
| Finish | Black |
| Protection rating | IP2x |
| Weight | 7kg / 15.4b |
