| Amplification class | Class D |
| Output power CEA-2006 / 490A (1% THD, 1 kHz, all channels driven) | 4 x 700 W RMS (16 Ω) |
| 4 x 1400 W RMS (8 Ω) | |
| 4 x 2400 W RMS (4 Ω) | |
| 4 x 2000 W RMS (2.7 Ω or 2 Ω) | |
| Digital Signal Processor (DSP) | 2 x SHARC 32-bit, oating point, 96 kHz sampling rate |
| Frequency response 20 Hz - 20 kHz | ± 0.1 dB（8 Ω 60 W output power） |
| ± 0.1 dB（4 Ω 120 W output power） | |
| Distortion THD+N (20 Hz - 10 kHz) | < 0.05%（8 Ω 60 W output power） |
| < 0.1%（4 Ω 120 W output power） | |
| Output dynamic range (20 H -20 kHz, 8Ω, A-weighted) | > 114 dB |
| Amplification Gain | 35 dB |
| Noise level (20 Hz - 20 kHz, 8 Ω, A-weighted) | < -68 dBV |
| Channel separation (at 1kHz , 3 x 120 W, 4 Ω) | > 85 dB |
| Damping factor | (1 kHz and below, 8 Ω) |
| Input delay | 0 ms to 500 ms |
| Output delay | 0 ms to 500 ms |
| Power supply | |
| Model | Universal Switched Mode Power Supply (SMPS) with power factor correction (PFC) |
| Power factor | > 0.9 (except Standby on all voltages, and Idle on 230 V) |
| Mains rating | 100 V - 240 V ~ ±10%，50-60 Hz |
| Voltage start range | 70-270 V 50-60Hz |
| Nominal current requirements | 200-240 V for 20A |
| Protection | |
| Mains and power supply | Over and under voltage |
| Temperature | |
| Over current (fuse protection) | |
| Power outputs | Over current |
| DC | |
| Short circuit | |
| Rail over and under | |
| Temperature | |
| fans with temperature-controlled speed | |

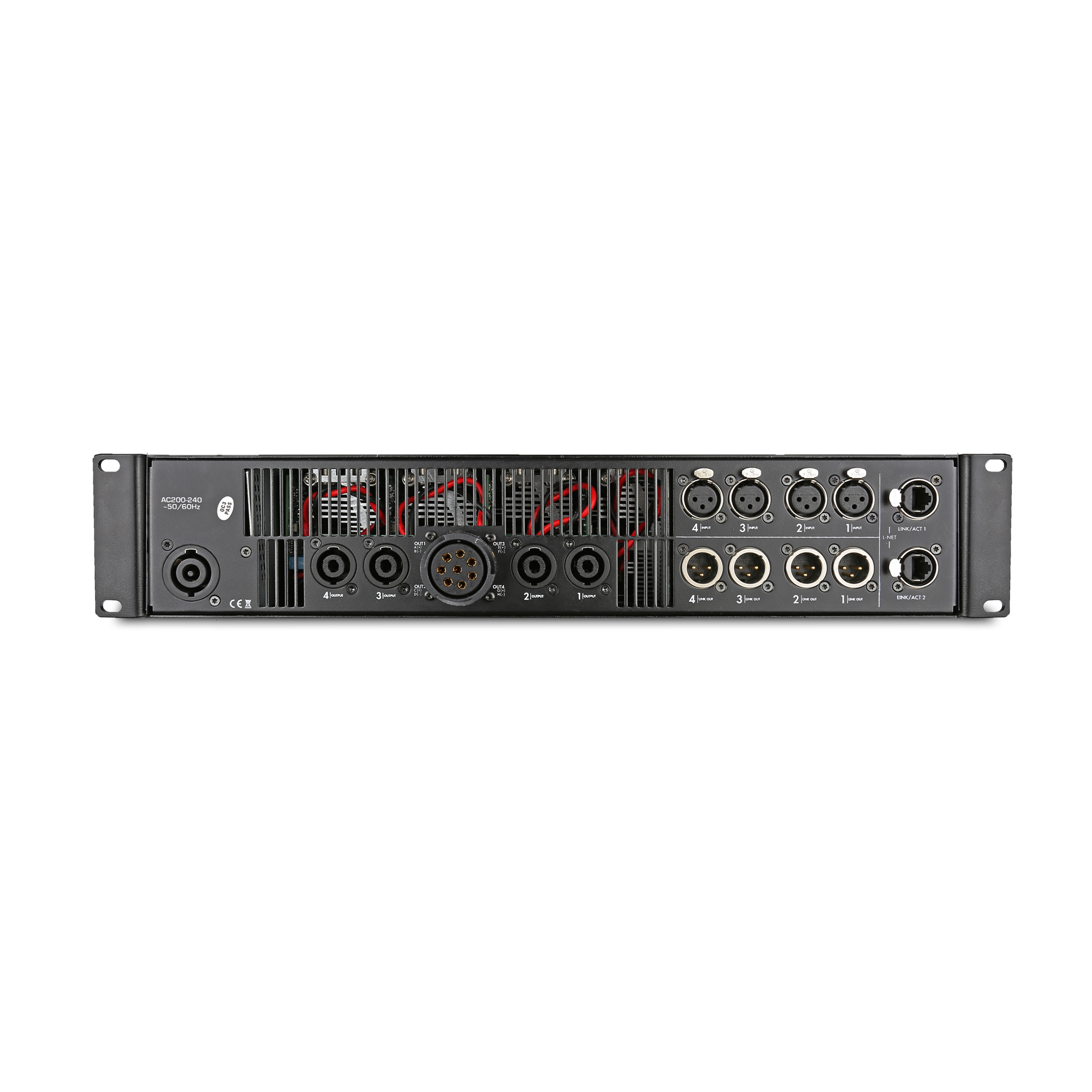

| Interface and connections | |
| Indicators | For each output: 5 x LEDs for mute, load, signal, levels and limit/clip information |
| Interface | 5" TFT-Touch screen |
| Output connectors | 4 Neutrik® NL4 |
| 1 PA-COM® 8-Ponit | |
| etherNet | 2 x 1 Gb/s RJ45 etherCON ® |
| Connectors | |
| Input | 4 Neutrik® female XLR3 |
| Link | 4 Neutrik® male XLR3 |
| Available input connectors vs. input mode | |
| Analog AB / Analog CD | IN A, IN B / IN C, IN D (4 connectors, 4 channels) |
| Link connectors | |
| Analog input mode | Passively connected |
| Digital input mode | Electronically buffered, fail safe relay |
| Analog input mode | |
| Input impedance | 22 kΩ (balanced) |
| Maximum input level | 21 dBu (balanced, THD 1%) |
| A/D conversion | 32-bit analog/digital converters (120 dB dynamic range) |
| Input gain | |
| Range | -80 dB to +15 dB |
| Steps | 0.1 dB |
| Remote control and monitoring | |
| Network connection | Dual-port Ethernet Gigabit interface |
| QANON AUDIO Remote control software | VDA Controller |
| Physical data | |
| Dimensions（W x H x D） | 483 x 88 x 465 mm |
| Finish | Black |
| Protection rating | IP2x |
| Weight | 17kg / 37.5Ib |
