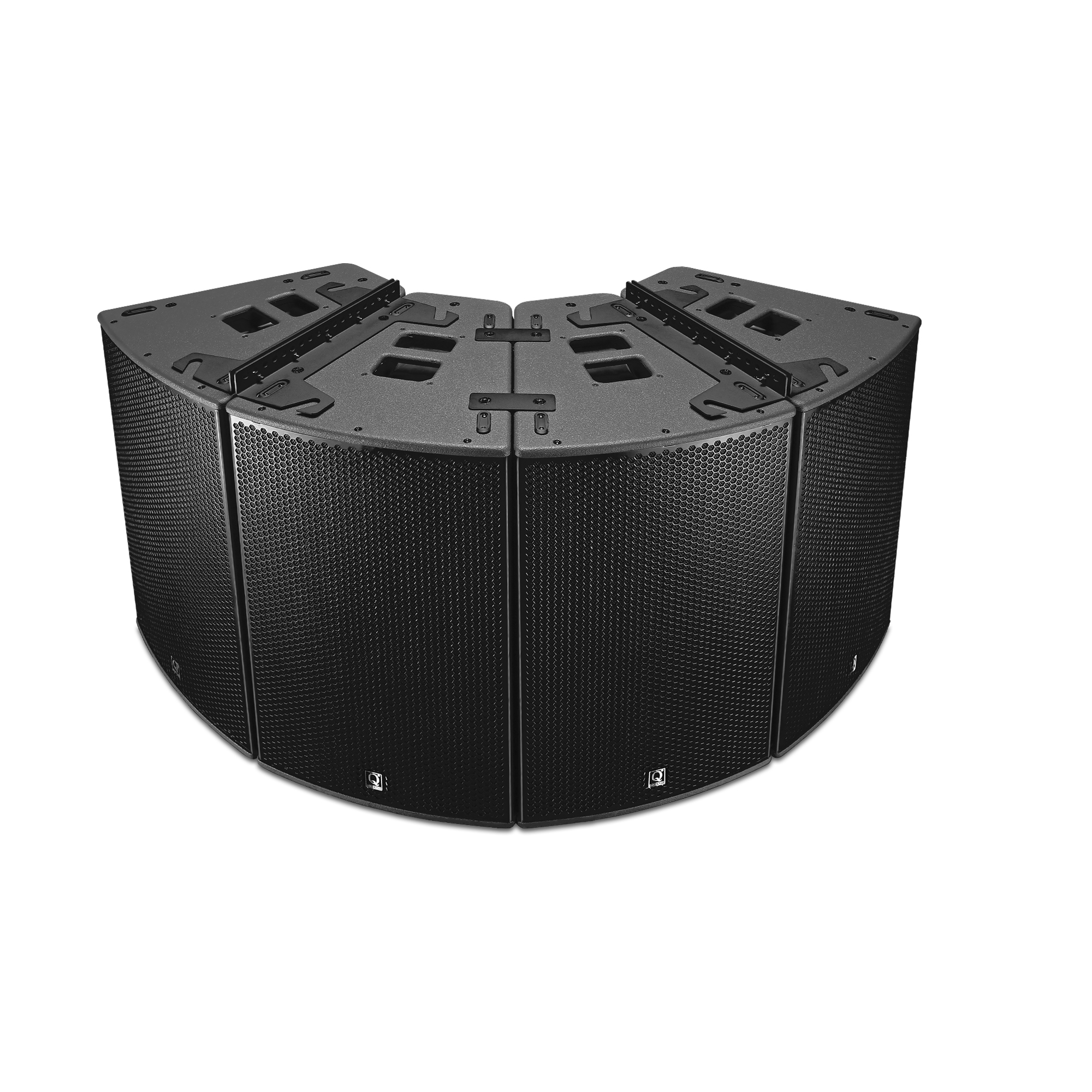

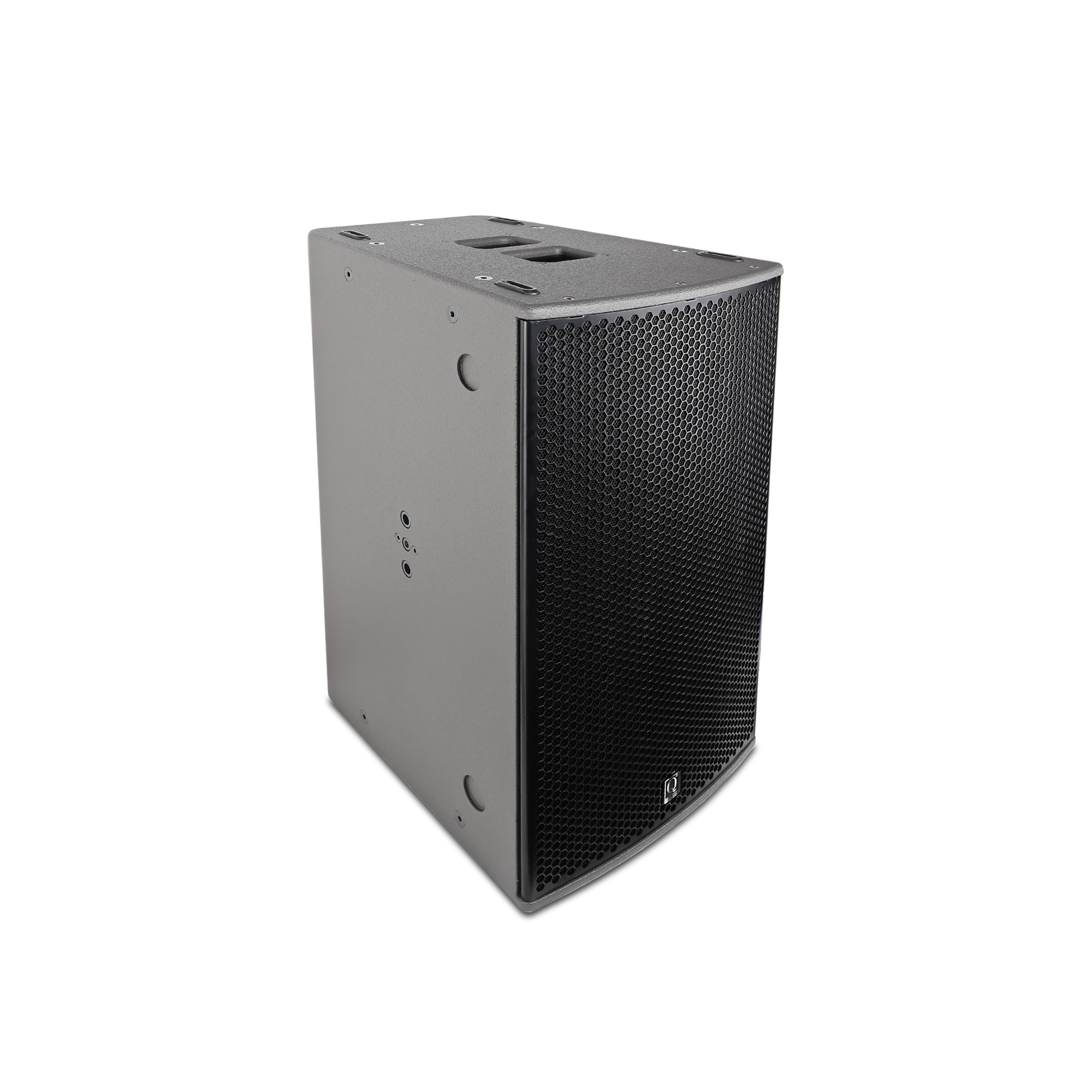

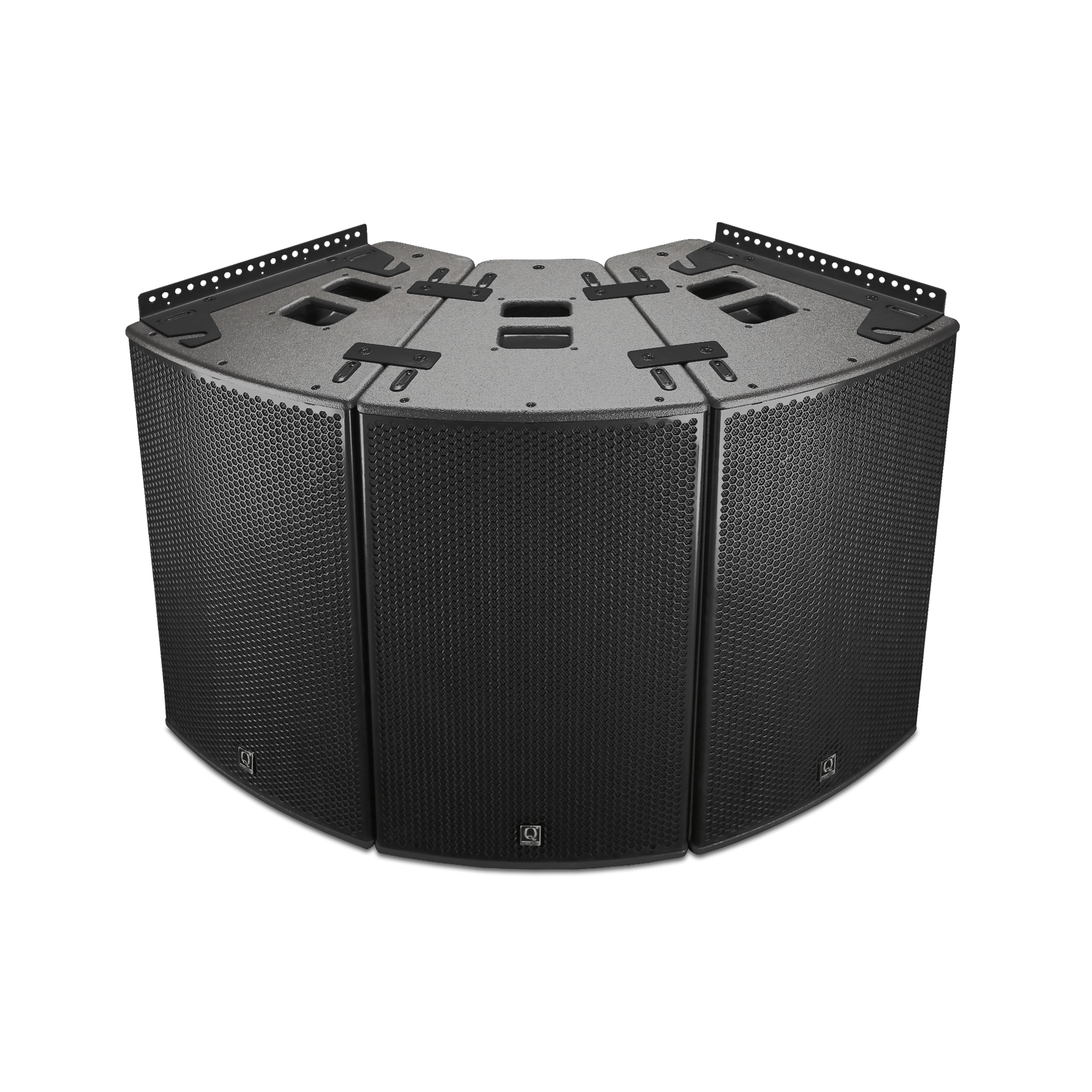

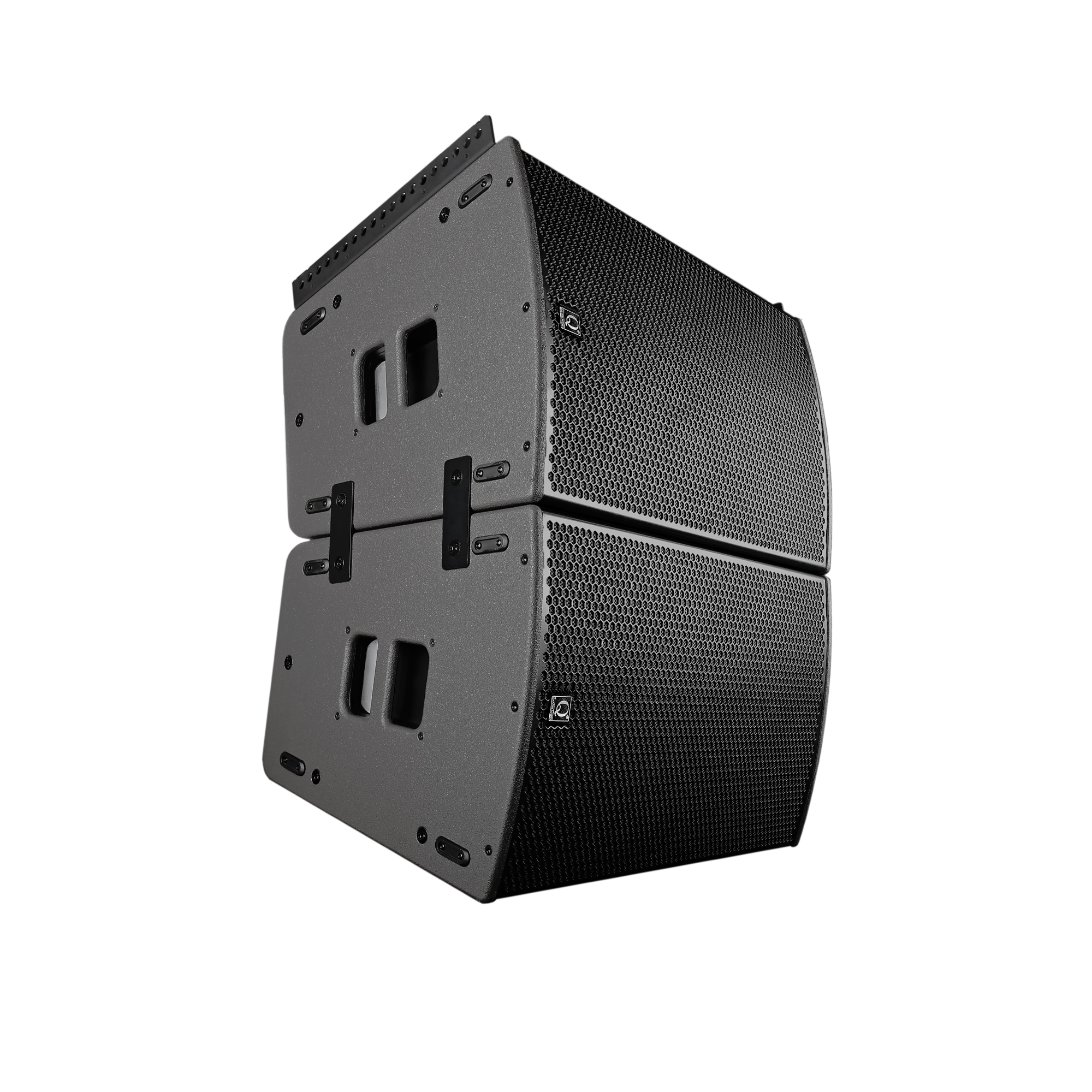

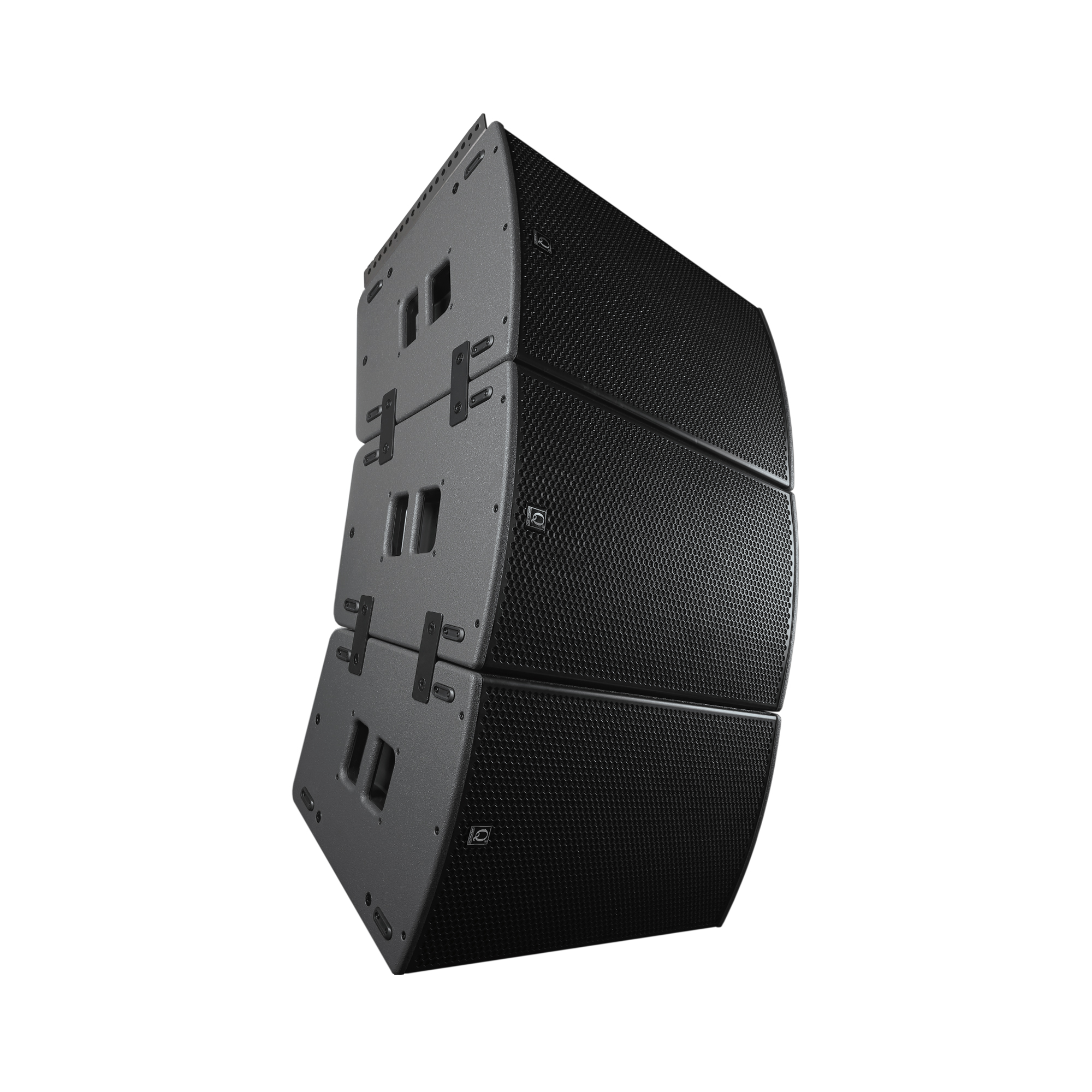

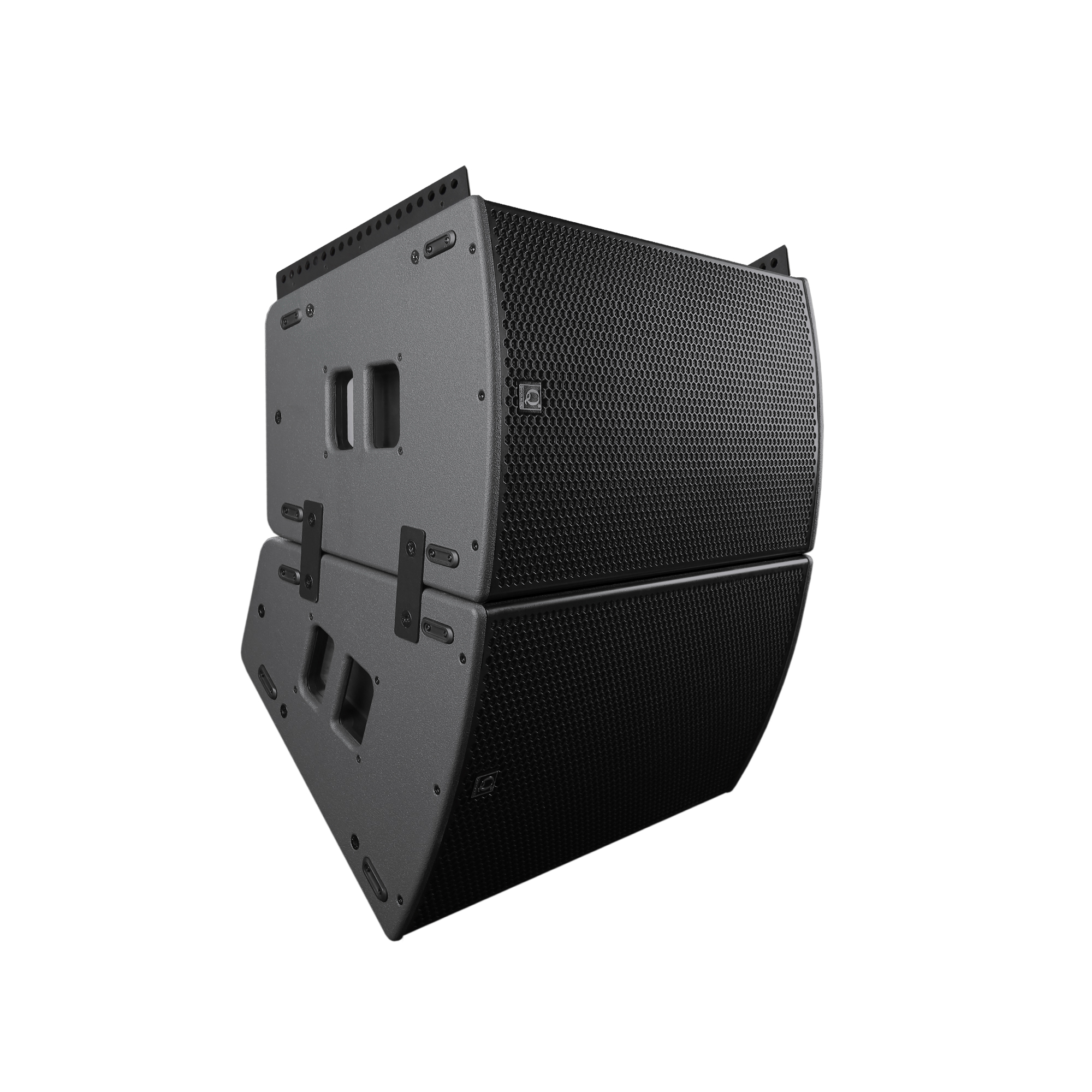

| Type | Bi-amp 2-way constant curvature Enclosure |
| Amplifier Recommend | VDA18 / VDA12 / C15 |
| Frequency Response(Preset) | 43Hz-20kHz(-10dB) |
| Enclosure Angle | 30° |
| Horizontal | 100° |
| Drivers | LF：1×15"（Neodymium） |
| HF：1×3"（Neodymium） | |
| Handling Power (AES) | LF：500W |
| HF：110W | |
| Maximum Peak SPL | 141dB/1m |
| Nominal Impedance | LF：8Ω / HF：16Ω |

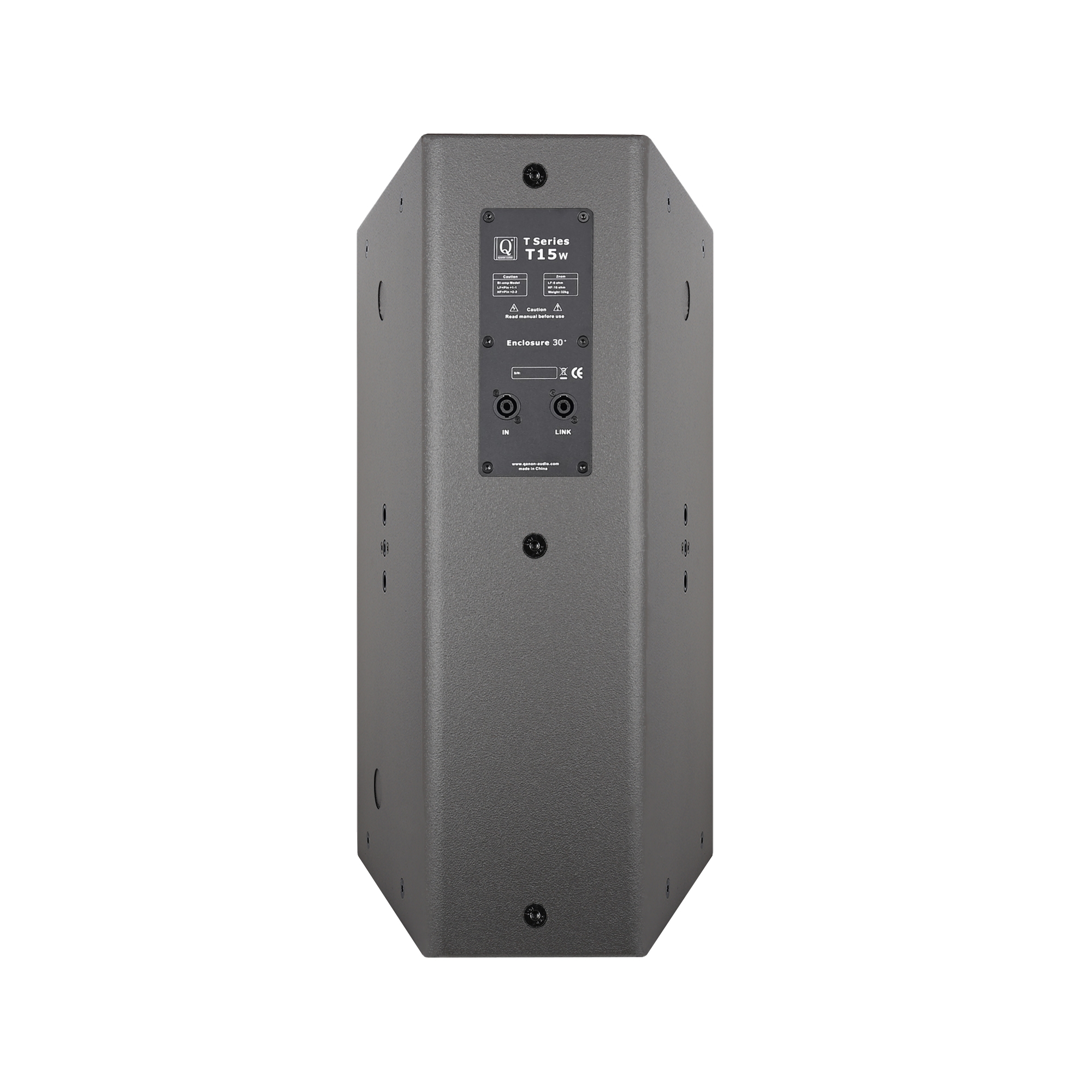

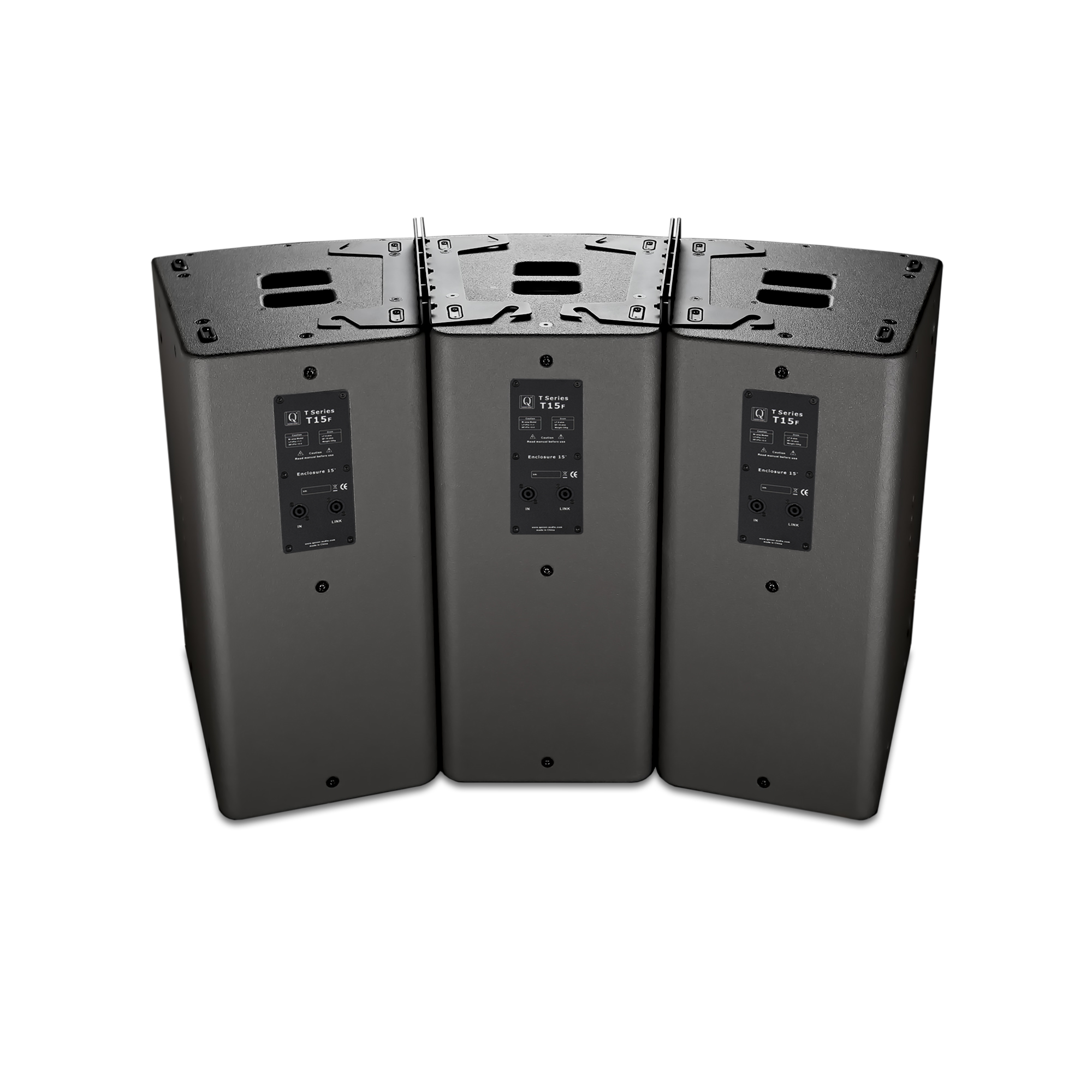

| Connectors | 2 x NL4 SpeakOn |
| Pin Connectors | IN = LF:+1-1 / HF:+2-2 |
| LINK = LF:+1-1 / HF:+2-2 | |
| Height Front | 450mm |
| Height Back | 198mm |
| Width | 750mm |
| Depth | 490mm |
| Weight | 30kg / 66lbs |
| Rigging and Handling | |
| Handle | 2 ergonomic handles |

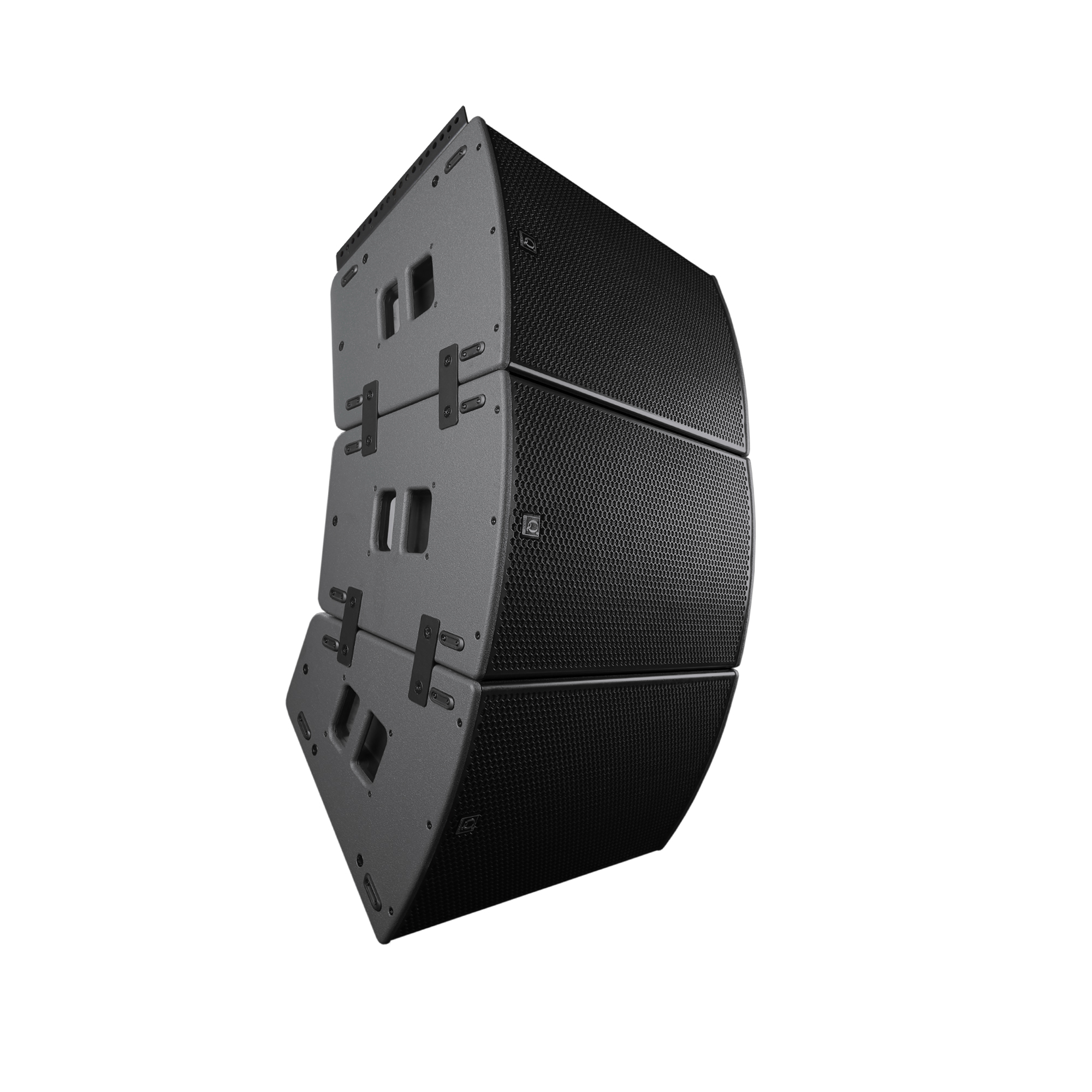

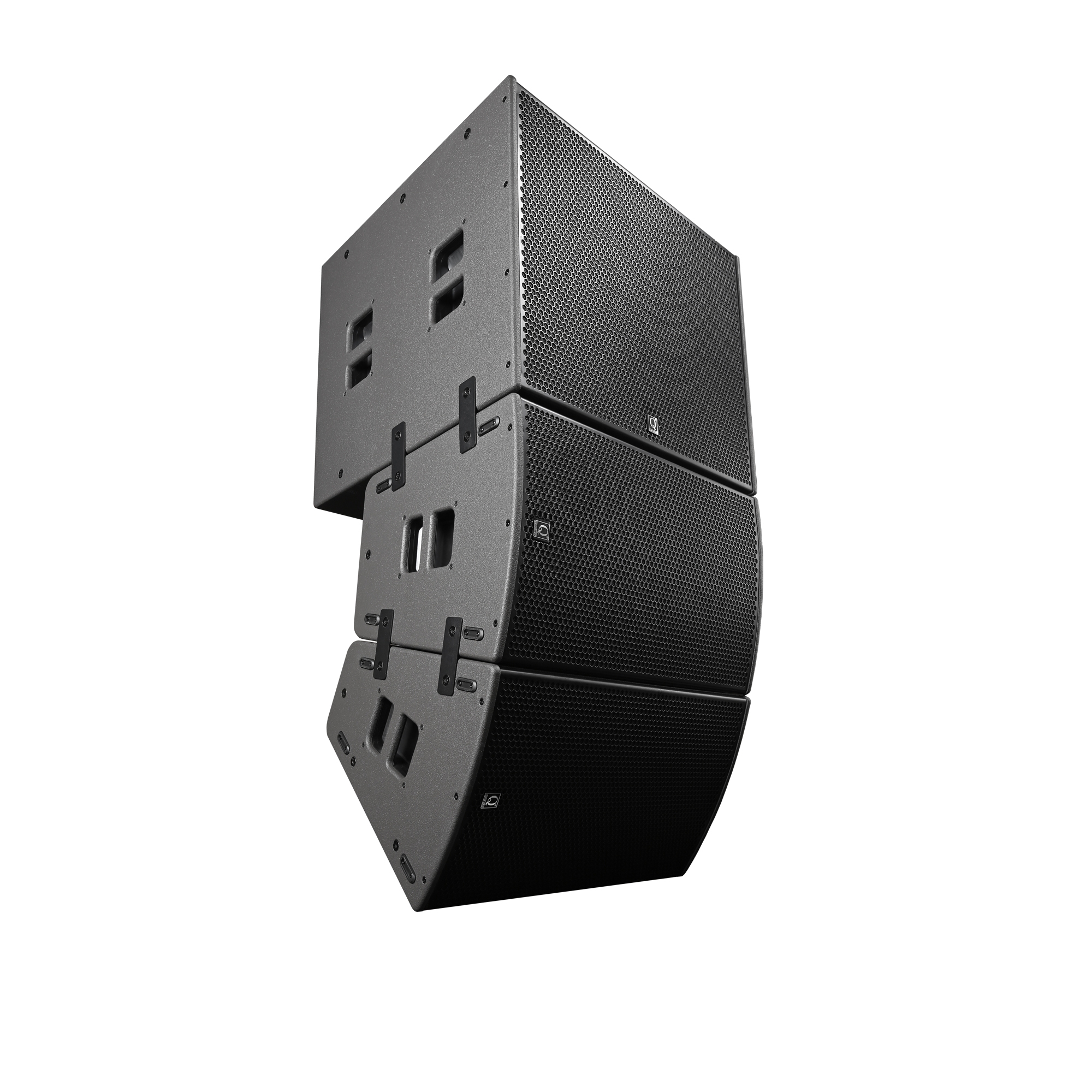

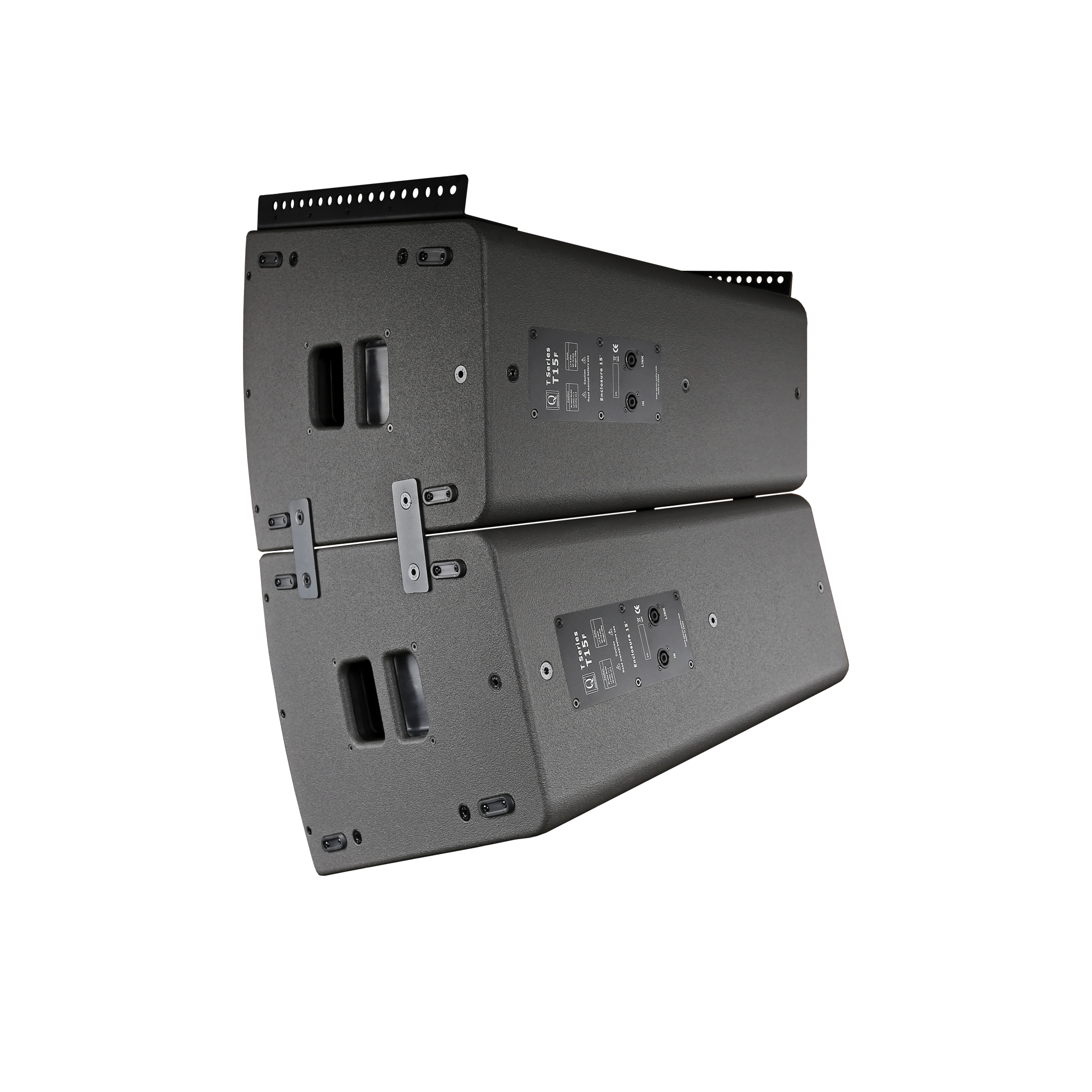

| Rigging System | Flush-fitting two-point |
| Threaded | 13x M10 threaded insert |
| Fastener | 8 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP45 |
