| Type | Extend woofer |
| Frequency Response(Preset) | 30Hz-200Hz |
| Amplifier Recommend | VDA18 / C18 / C15 |
| Preset | [V25_100/C] [V25_125/C] |
| Horizontal | 360° |
| Angle Increments | 0° 1° 2° 3° |
| Drivers | LF:2×15" 100mm Voice Neodymium |
| Handling Power (RMS) | LF:1200W |
| Maximum Peak SPL | 142dB/1m |
| Nominal Impedance | LF:4Ω |
| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Heigh Front | 445mm |
| Heigh Back | 445mm |
| Width | 1200mm |
| Depth | 550mm |
| Weight | 72kg / 158.7lbs |
| Rigging and Handling | |
| Handle | 6 ergonomic handles |
| Antiskid | 2 ground runners |
| Fastener | 4 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
V15/V12/V25 Bump-Bar | Suitable for V15/V12/V25 enclosures, with extend Bar |
 |
Laser+Receiver | Adopting high-precision digital sensor+20mw point far-field fixed focus coaxial laser |
 |
V15/V12/V25-DELTA | Allows for horizontal aiming using two motors on the back or front of the array. |
 |
V15/V12/V25 Bump-Bar Flight Case | Accommodate 2 Bump / 2 Bar, and hanging equipment accessories |
 |
U-shaped shackle | 3.25t 5/8 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 2T/2m spanset used for connect shackles, used for front and rear |
 |
V25-Trolley | The trolley can accommodate 4 stacked V25 enclosures, combined with a hanging rigging system |
 |

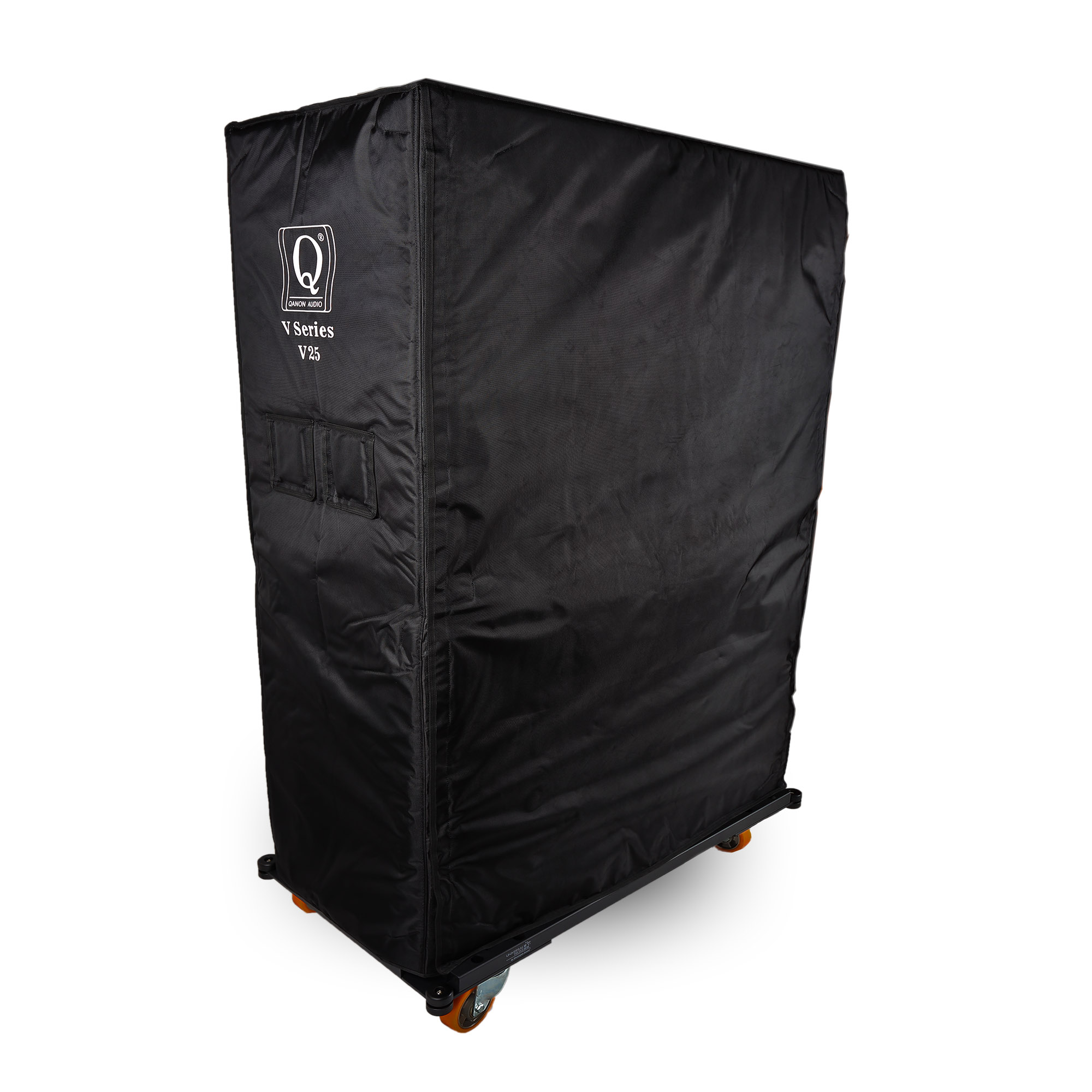

V25-Cover | Cover for 4x V25 enclosures stacked on V25 Trolley |
 |
V15/V12/V25 Rigging-Cover | 1、8-12 V25（6m）length 2、14-18 V25（8.5m）length |
 |
VDA18-Rack | 9U rack mounted with 3 VDA18 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution |
 |
C18-Rack | 9U rack mounted with 3 C18 amplifiers、1 DF36 Audio Processor, Qanon Audio DS3 Three-Phase Power distribution |
 |
2-Pin 2*4㎡ NL4 Speaker Cables | 1、2Pin-NL4-15（15meter） 2、2Pin-NL4-25（25meter） |
 |
8-Pin 8*4㎡ PA-COM Speaker Cables | 1、PA-COM-0.7（0.7meter） 2、PA-COM-10（10meter） 3、PA-COM-15（15meter） 4、PA-COM-25（25meter） |
 |
8-Pin PA-COM Male without locking to 4ch NL4（ch1、ch2、ch3、ch4）Wiring：+1-1 | 5meter / 4ch |
