| Type | Extend woofer |
| Frequency Response(Preset) | 45Hz-200Hz |
| Amplifier Recommend | VDA14 / VDA12 |
| Preset | [X8S_100/C] [X8S_125/C] |
| Horizontal | 360° |
| Angle Increments(X8) | 0° -2° -4° -6° |
| Angle Increments(X8) | 0° +2° +4° +6° |
| Drivers | LF:1×15" 100mm Voice Coil Neodymium |
| Handling Power (RMS) | LF:600W |
| Maximum Peak SPL | 134dB/1m |
| Nominal Impedance | LF:8Ω |
| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 |
| Height Front | 560mm |
| Height Back | 560mm |
| Width | 430mm |
| Depth | 600mm |
| Weight | 35kg / 79.3lbs |
| Rigging and Handling | |
| Handle | 4 ergonomic handles |

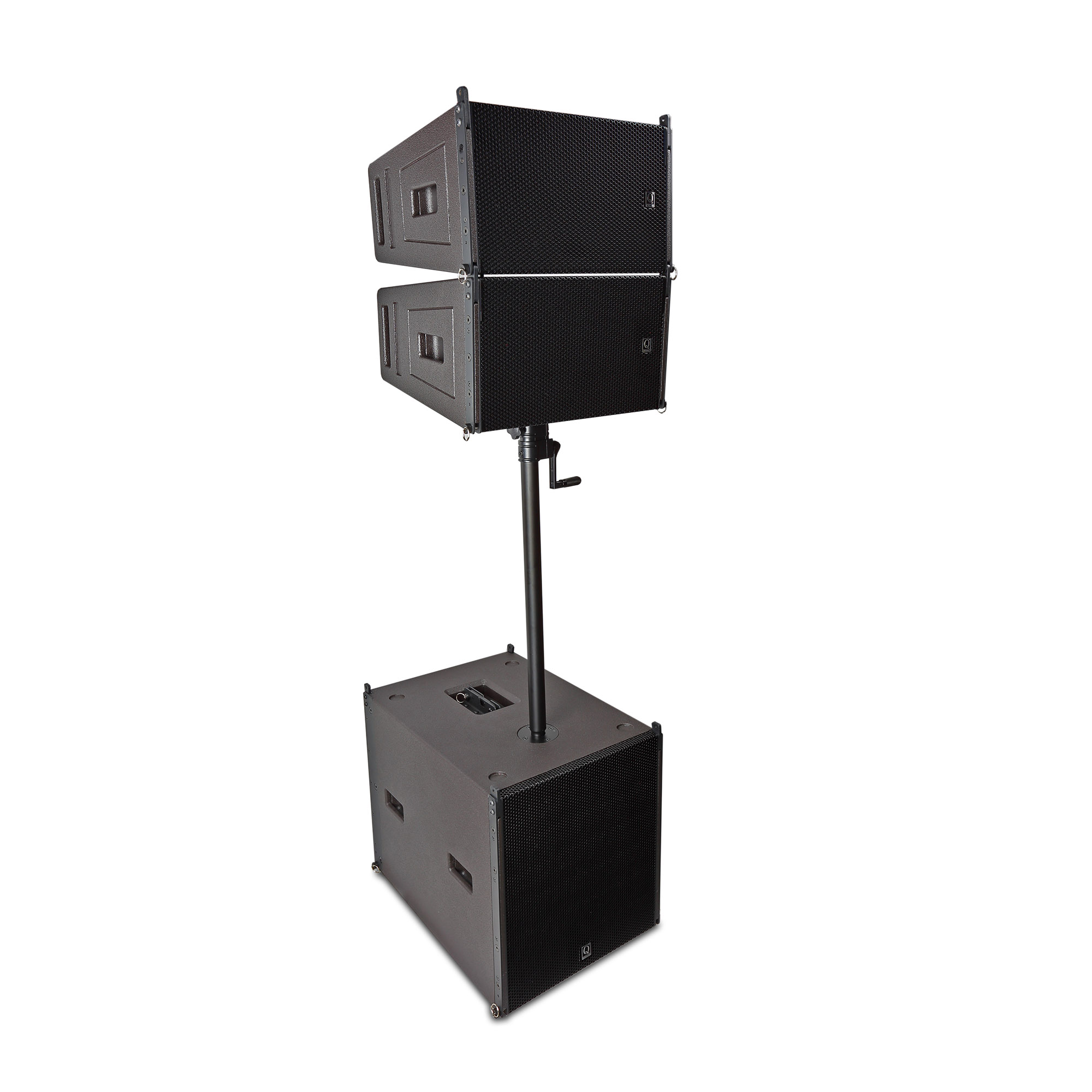

| Pole socket | 1x 35mm Pole socket |
| Fastener | 5 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
X8/X8Sub-Bump | Suitable for X8/X8Sub enclosures |
 |
X8 Stand-Bar | Suitable for stacking and connecting with X8 enclosures Adjustable from 0 °,2 ° ,4 °,6 ° |
 |
U-shaped shackle | 2t 1/2 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 1T/1m spanset used for connect shackles, used for front and rear |
 |
X8Sub-Trolley | The trolley can accommodate 2 stacked X8Sub enclosures, combined with a hanging rigging system |
 |
X8Sub-Cover | Cover for 2x X8Sub enclosures stacked on X8Sub Trolley |
 |

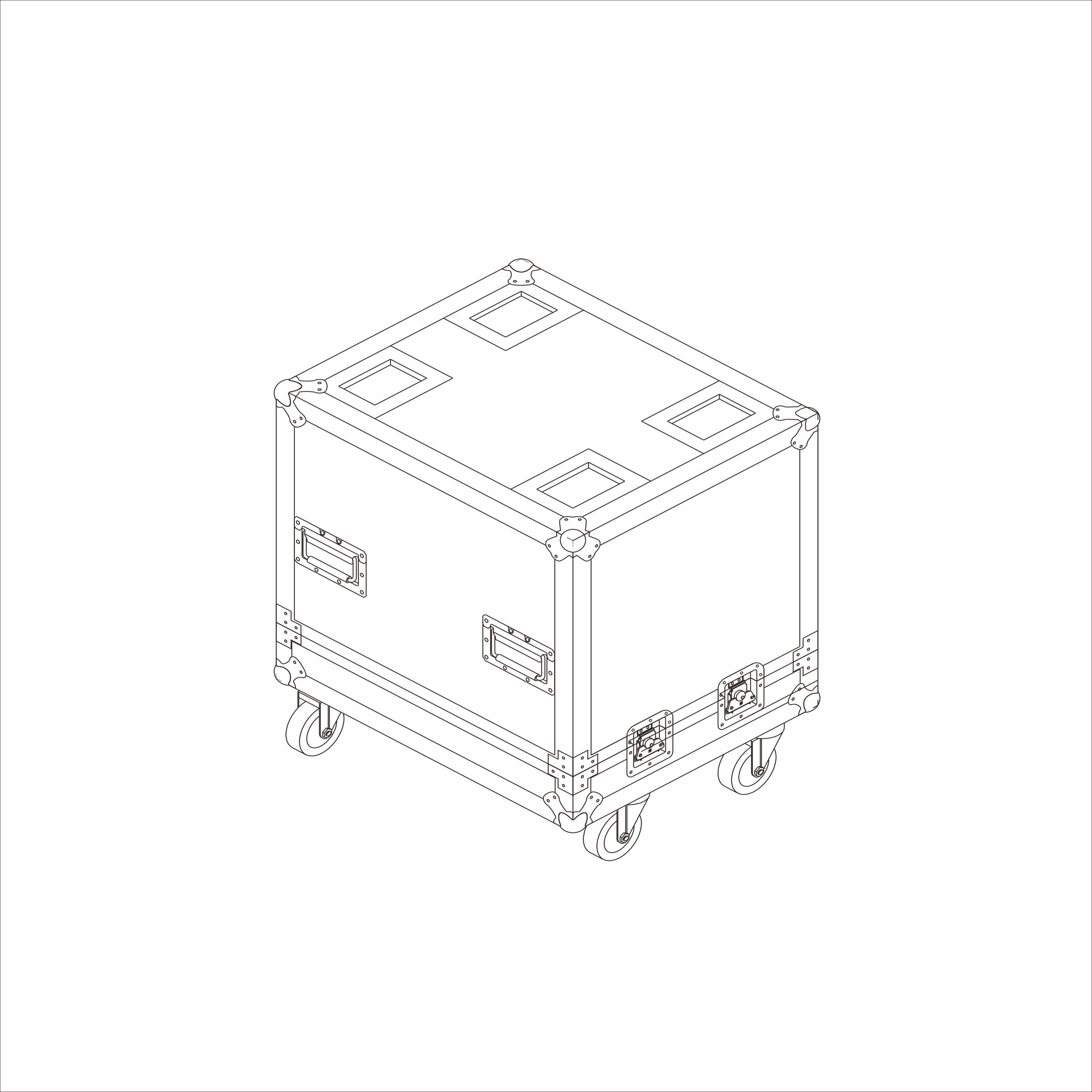

X10Sub Touring Flight Case | Accommodate 1 X8Sub Dimensions（W x H x D）：545 x 755 x 660mm |
 |
X8/X8Sub Stack-Cover | 4 X8 2 X8Sub |
 |
Rigging-Cover | 1、8 X8 or 4 X8Sub（2.5m）length |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
2-Pin 2*2.5㎡ NL4 Speaker Cables | 1、2Pin-NL4-1（1meter） 1、2Pin-NL4-10（10meter） 2、2Pin-NL4-15（15meter） 3、2Pin-NL4-25（25meter） |
