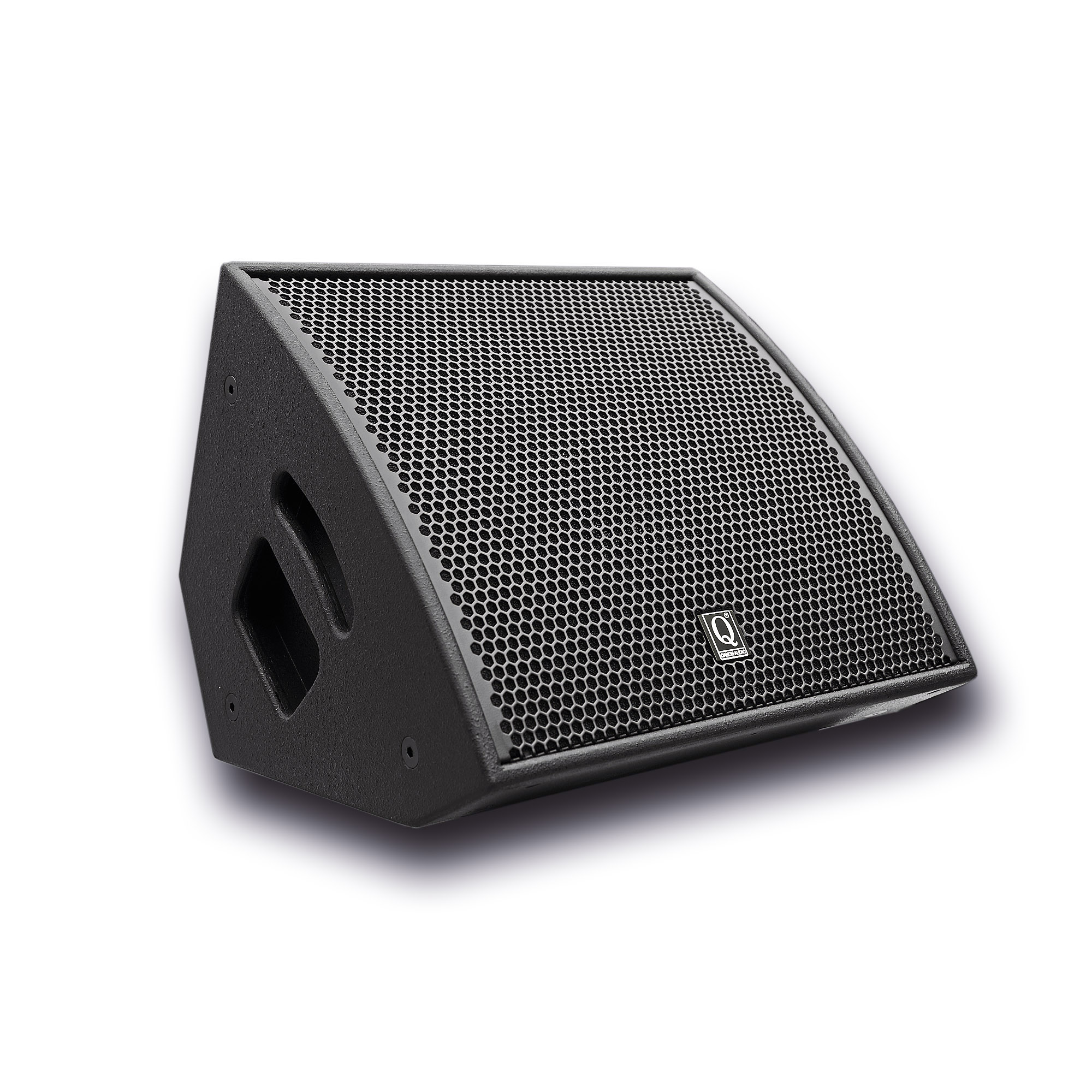

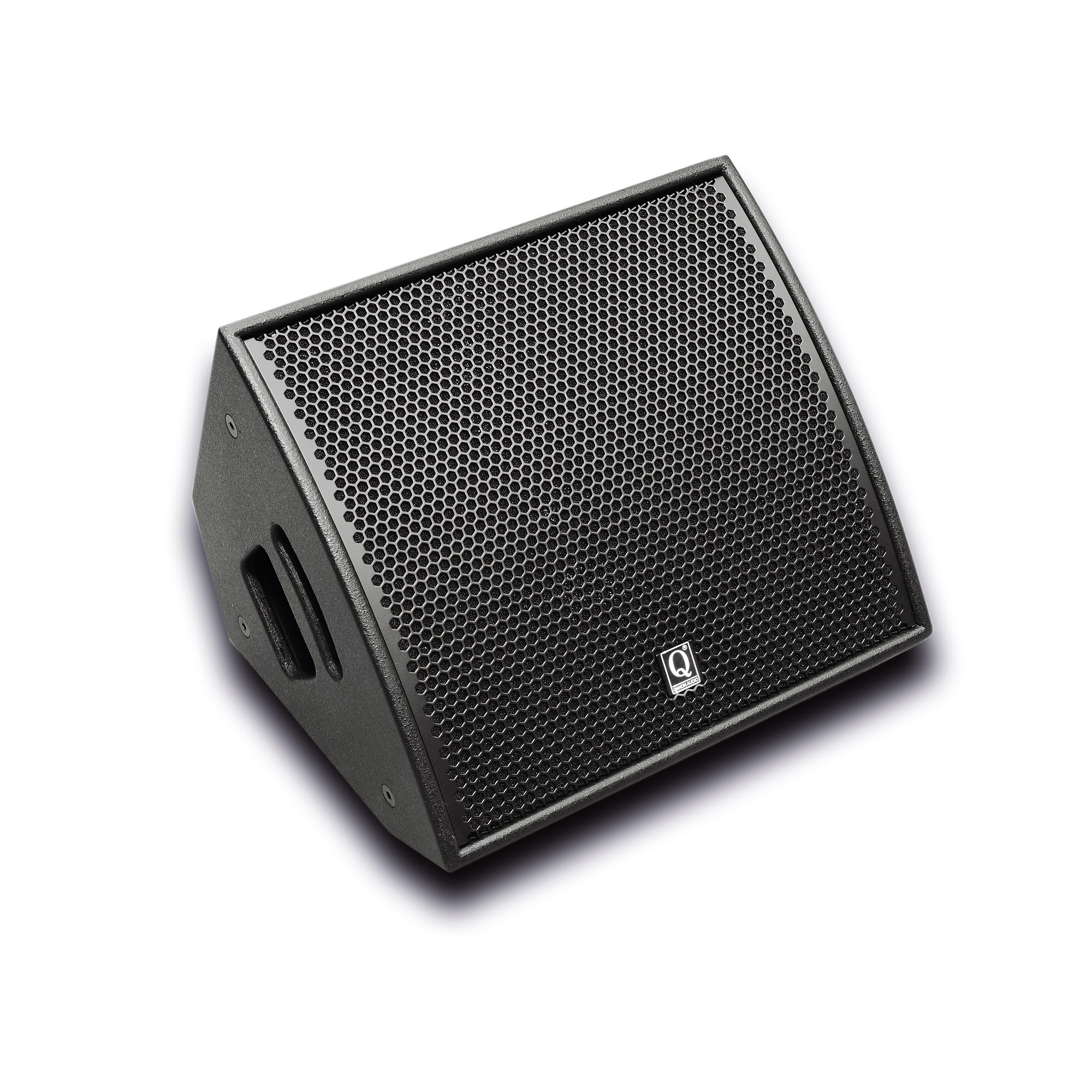

Type | Passive 2-way Coaxial Enclosure |
Frequency Response(Preset) | 70Hz-20kHz |
Amplifier Recommend | VDA12 / VDA4 |
Preset | [TC10] / [TC10_MO] |
Horizontal | 80° |
Vertical | 80° |
Monitor Angle | 55°(1) |
20°(2) | |
Drivers | LF:1×10" 65mm Voice Coil Ferrite |
HF:1×1.75" 44mm Voice Coil Ferrite | |
Handling Power (RMS) | LF:200W |
HF:30W | |
Nominal Impedance | LF:8Ω / HF:8Ω |
Maximum Peak SPL | 125dB/1m |

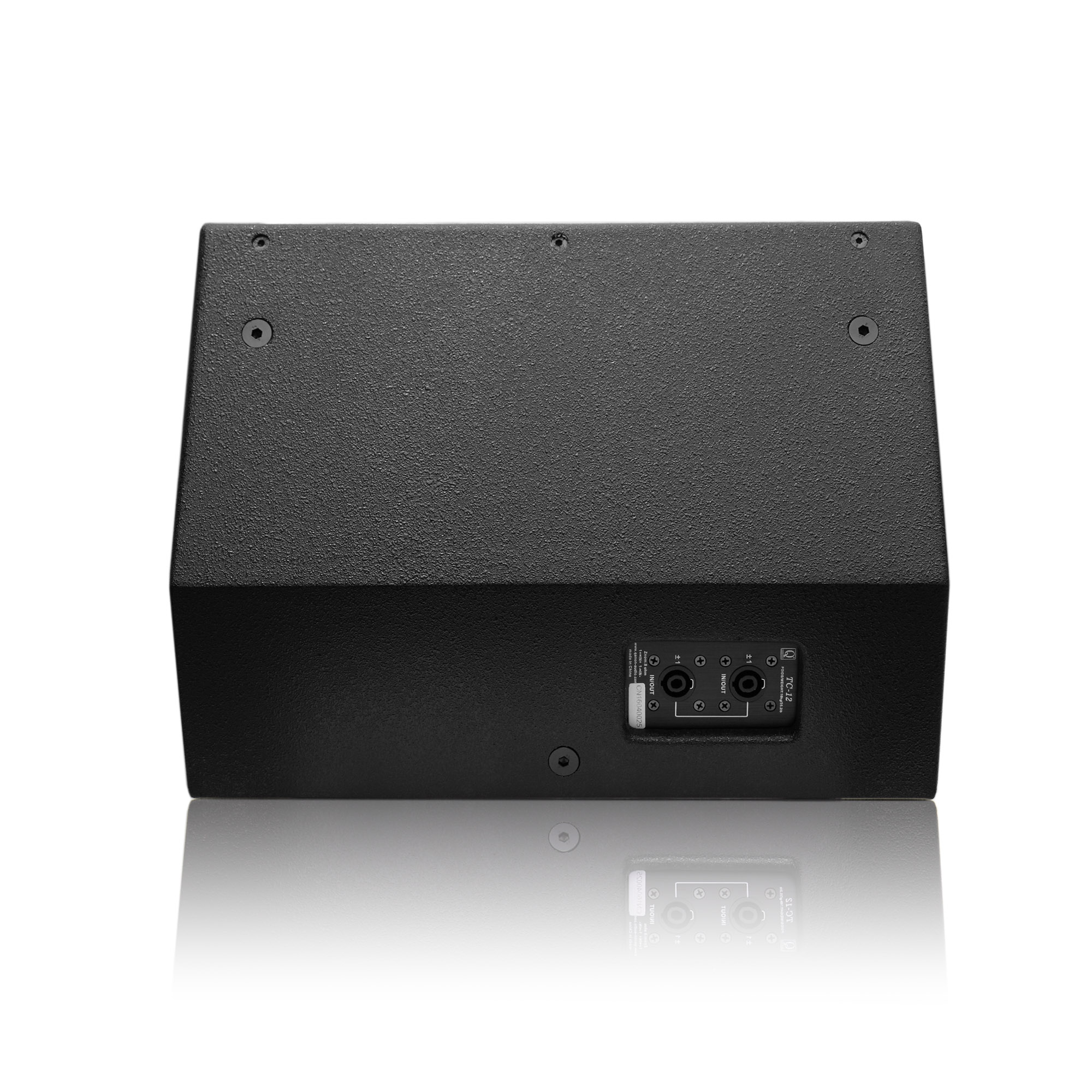

Connections | 2 x NL4 SpeakOn |
Pin Connections | NL4=LF:+1-1 |
Width | 350mm |
Height | 400mm |
Depth | 270mm |
Weight | 13kg / 28.6lbs |
Rigging and Handling | |
Handle | 2 handles |
Threaded | 13x M8 threaded insert |

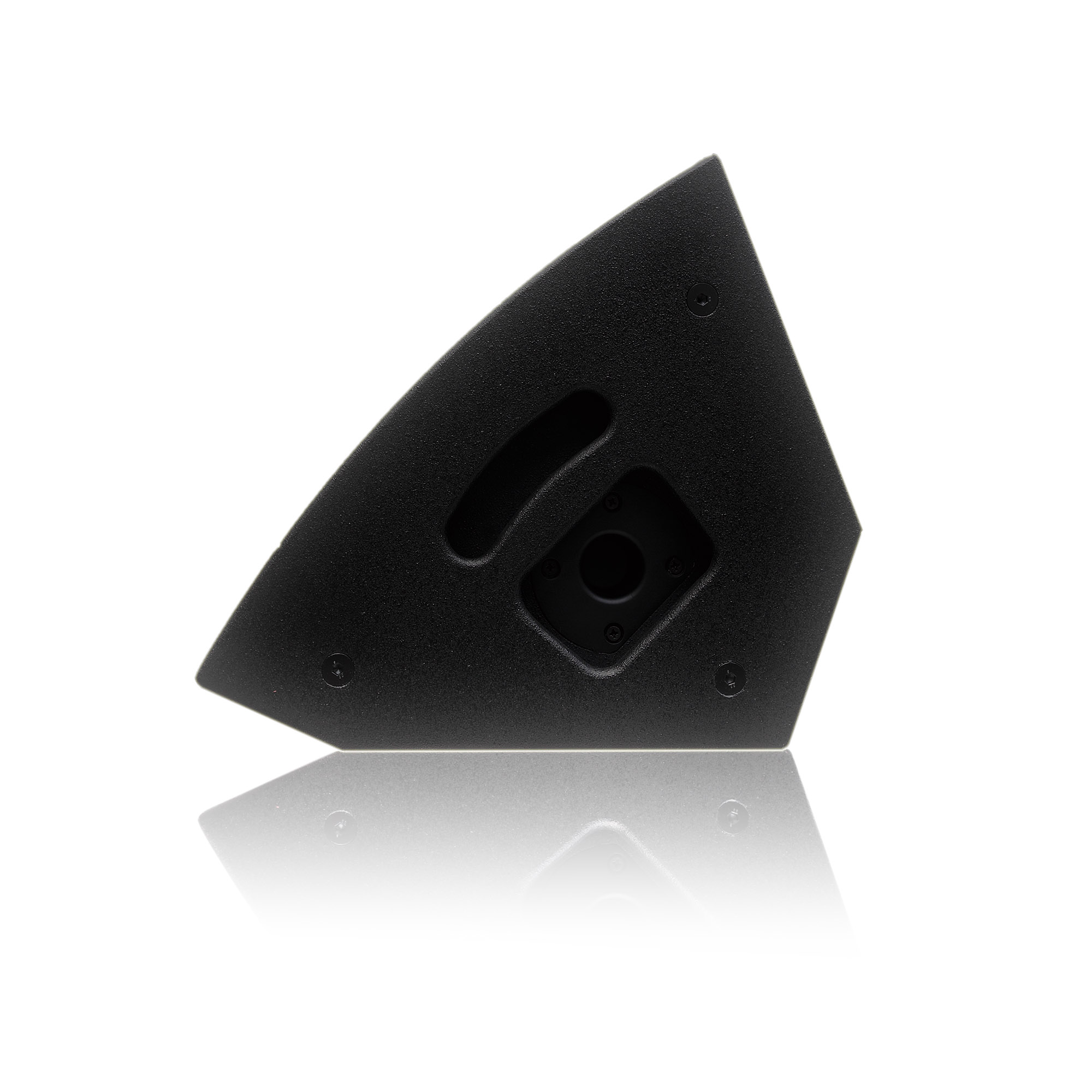

Pole socket | 1x 35mm Pole socket |
stand bar | 4x 10mm*38mm(H*⌀) |
Physical Data | |
Material | Baltic Birch Plywood |
Finish | Black |
Front | Polyester powder-coated steel grill |
Rigging | Steel |
Protection rating | IP45 |
![]() |
Eyebolt | M8*30 lifting ring, used for connecting with buckle ring |
![]() |
TC10 Touring Flight Case | Accommodate 4 TC10 |
![]() |
TC10-Cover | 1 TC10 |
![]() |
VDA12 | 16Ω:4 x 600W RMS 8Ω:4 x 1200W RMS 4Ω/2.7Ω:4 x 2000W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%,50-60 Hz |
![]() |
VDA4 | 16Ω:4 x 200W RMS 8Ω:4 x 400W RMS 4Ω/2.7Ω:4 x800W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%,50-60 Hz |
![]() |
2-Pin 2*2.5㎡ NL4 Speaker Cables | 1、2Pin-NL4-5(5meter) 3、2Pin-NL4-10(10meter) 3、2Pin-NL4-15(15meter) 4、2Pin-NL4-25(25meter) |
