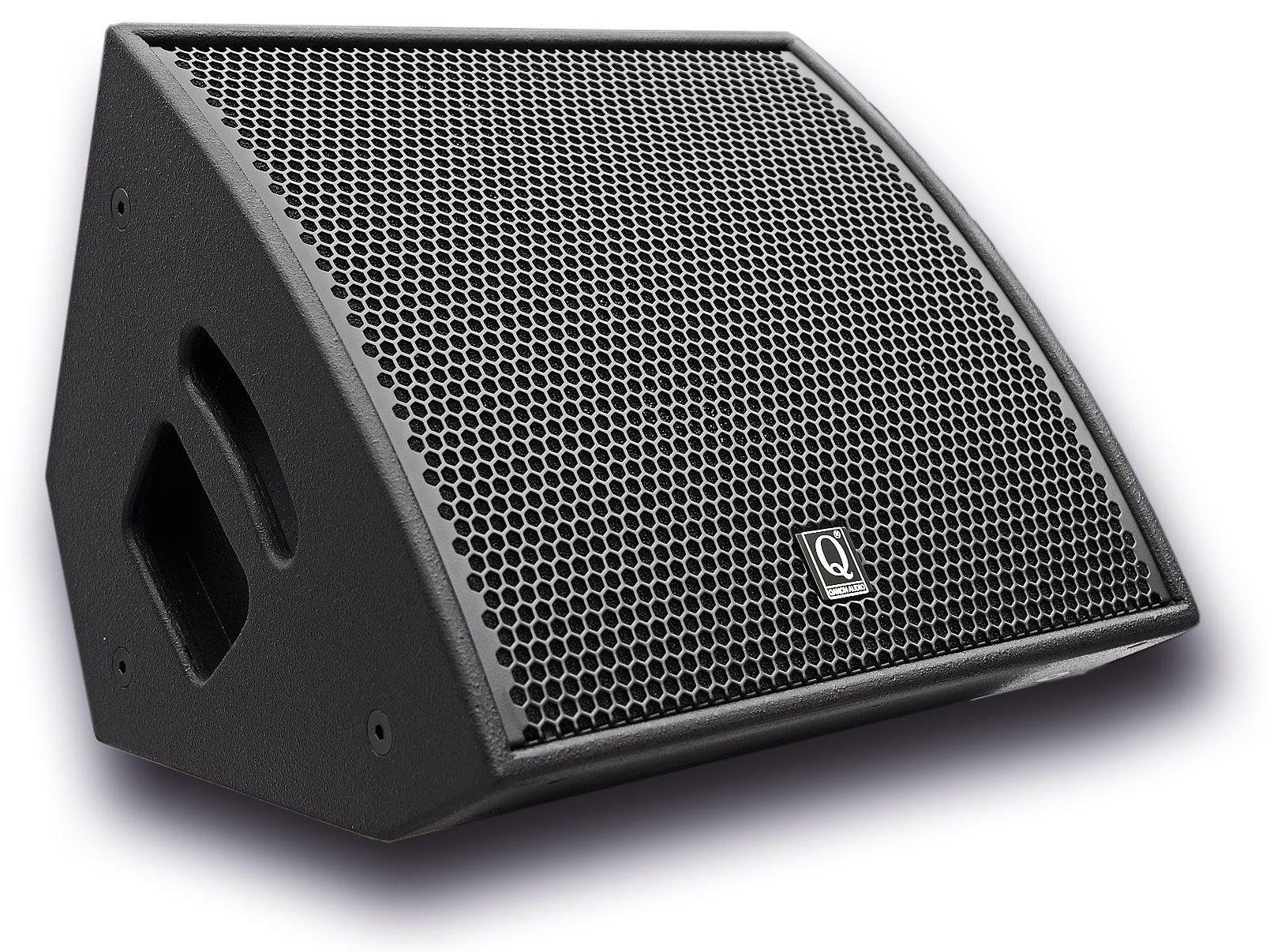

Type Passive 2-way Coaxial Enclosure
Frequency Response(Preset) 55Hz-20kHz
Amplifier Recommend VDA18 / VDA14 / VDA12
Preset [TC15] [TC15_MO]
Horizontal 40°
Vertical 60°
Monitor Angle 55°(1)
15°(2)
Drivers LF:1×15" 75mm Voice Coil Ferrite
HF:1×1.75" 44mm Voice Coil Ferrite
Handling Power (RMS) LF:350W
HF:60W
Maximum Peak SPL 133dB/1m
Nominal Impedance LF:8Ω / HF:8Ω
Connections 2 x NL4 SpeakOn
Pin Connections NL4=LF:+1-1
Width 460mm
Height 600mm
Depth 360mm
Weight 25kg / 55.1lbs
Rigging and Handling

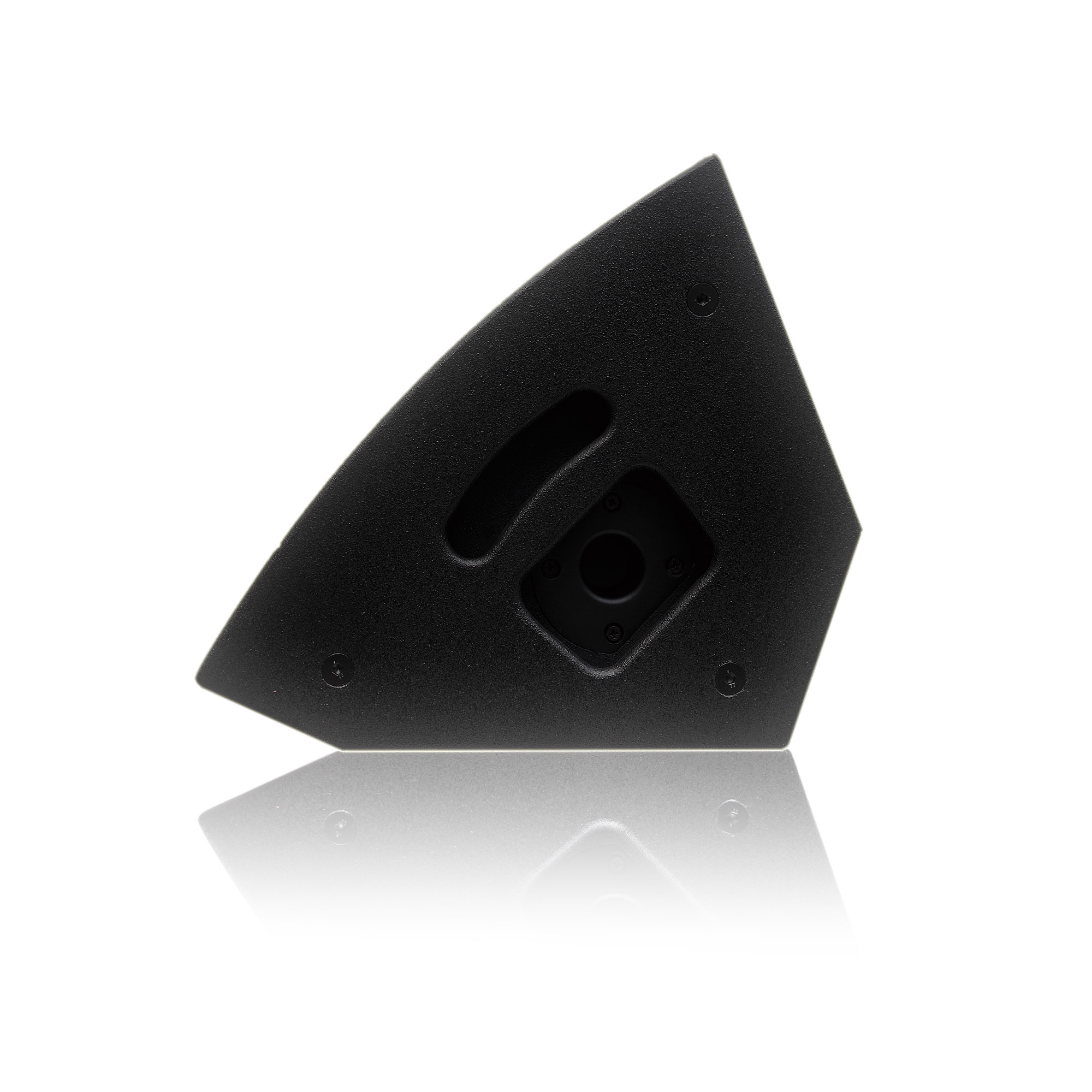

Handle 2 handles
Threaded 13x M8 threaded insert
Pole socket 1x 35mm Pole socket
stand bar 4x 10mm*38mm(H*⌀)
Physical Data
Material Baltic Birch Plywood
Finish Black
Front Polyester powder-coated steel grill
Rigging Steel
Protection rating IP55
Eyebolt M8*30 lifting ring, used for connecting with buckle ring
TC15 Touring Flight Case Accommodate 2 TC15 Dimensions(W x H x D):845 x 810 x 490mm
TC15-Cover 1 TC15
VDA18-Rack1 3U rack mounted with 1 VDA18 amplifiers, and 1 SCN Signal panel
VDA14-Rack1 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel
2-Pin 2*4㎡ NL4 Speaker Cables 1、2Pin-NL4-5(5meter) 3、2Pin-NL4-10(10meter) 3、2Pin-NL4-15(15meter) 4、2Pin-NL4-25(25meter)
