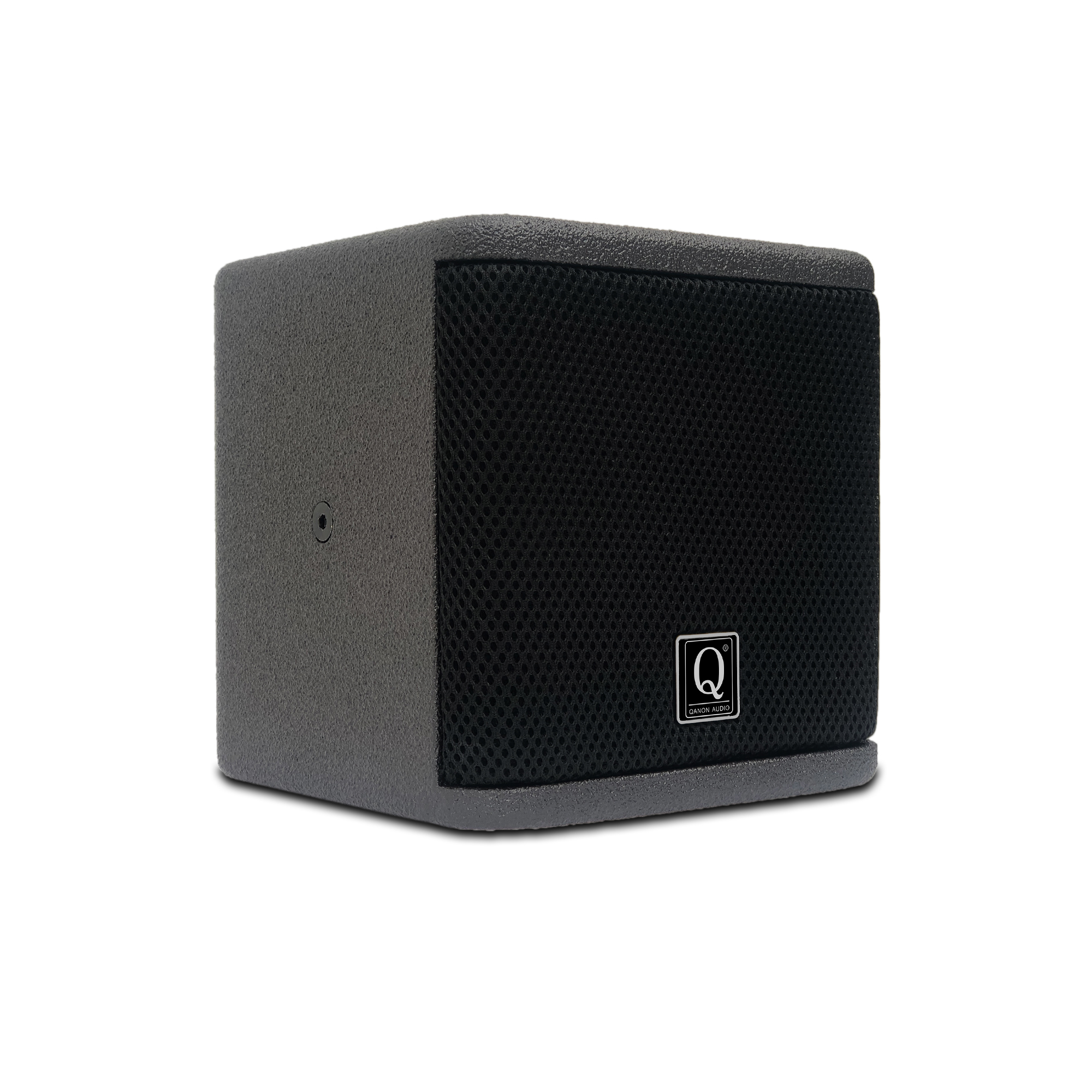

Type 2-way passive Coaxial Point source
Frequency Response(Preset) 95Hz-20kHz
Amplifier Recommend VDA12 / VDA4
Preset [5CS]
Horizontal 110° x 110°
Drivers LF:1×5" 38mm Voice Coil Neodymium
HF:1×1.75" 44mm Voice Coil Neodymium
Handling Power (RMS) LF:80W
HF:20W
Maximum Peak SPL 121dB/1m
Nominal Impedance LF:16Ω
Connections 2 x NL4 SpeakOn
Pin Connections NL4=LF:+1-1
Heigh Front 165mm
Heigh Back 165mm
Width 165mm
Depth 165mm
Weight 3.5kg / 7.7lbs
Rigging and Handling
Threaded 1x M8 threaded insert
Threaded 2x M6 threaded insert
Rigging 5CS-UL U-shaped
Physical Data
Material Baltic Birch Plywood
Finish Dark grey
Front Polyester powder-coated steel grill
Rigging Steel
Protection rating IP55
5CS-UL Suitable for 5CS enclosures
Lighting Hook Suitable for connecting UL/ULi hangers
Floor stand Adjustable height,3/8 threaded insert
VDA12 16Ω:4 x 600W RMS 8Ω:4 x 1200W RMS 4Ω/2.7Ω:4 x 2000W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%,50-60 Hz
VDA4 16Ω:4 x 200W RMS 8Ω:4 x 400W RMS 4Ω/2.7Ω:4 x800W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%,50-60 Hz
2-Pin 2*2.5㎡ NL4 Speaker Cables 1、2Pin-NL4-5(5meter) 3、2Pin-NL4-10(10meter) 3、2Pin-NL4-15(15meter) 4、2Pin-NL4-25(25meter)
