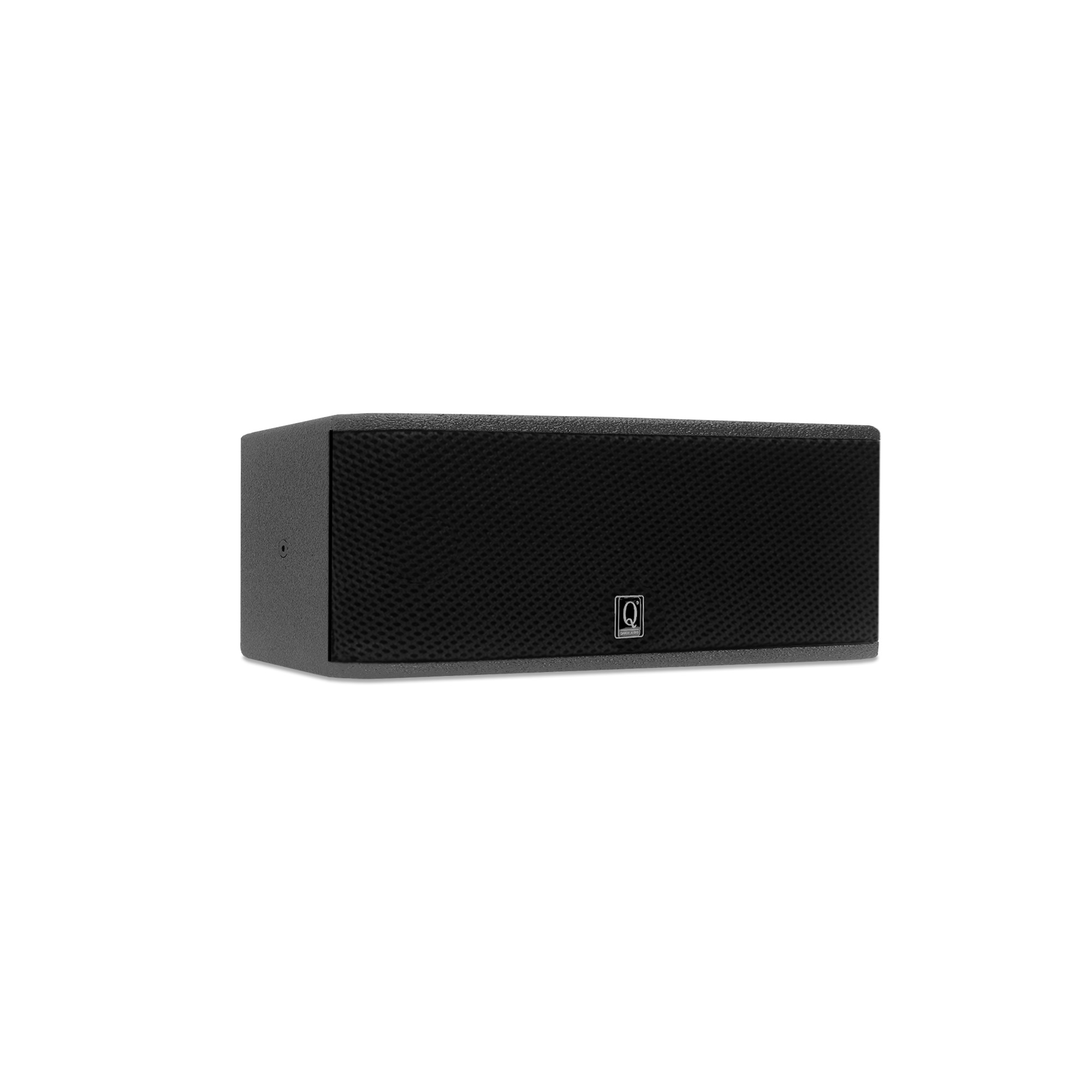

Type 2-way passive Point source
Frequency Response(Preset) 90Hz - 20kHz
Amplifier Recommend VDA12 / VDA4
Preset [5DS]
Horizontal 90°(-6dB)
Vertical 60°(-6dB)
Drivers LF:2×5" 38mm Voice Coil Neodymium
HF:1×1.75" 44mm Voice Coil Neodymium
Handling Power (RMS) LF:160W
HF:60W
Maximum Peak SPL 124dB/1m
Nominal Impedance LF:8Ω
Connections 2 x NL4 SpeakOn
Pin Connections NL4=LF:+1-1
Heigh Front 165mm
Heigh Back 165mm
Width 450mm
Depth 165mm
Weight 9.3kg / 20.5lbs
Rigging and Handling
Threaded 3x M8 threaded insert
Threaded 4x M6 threaded insert

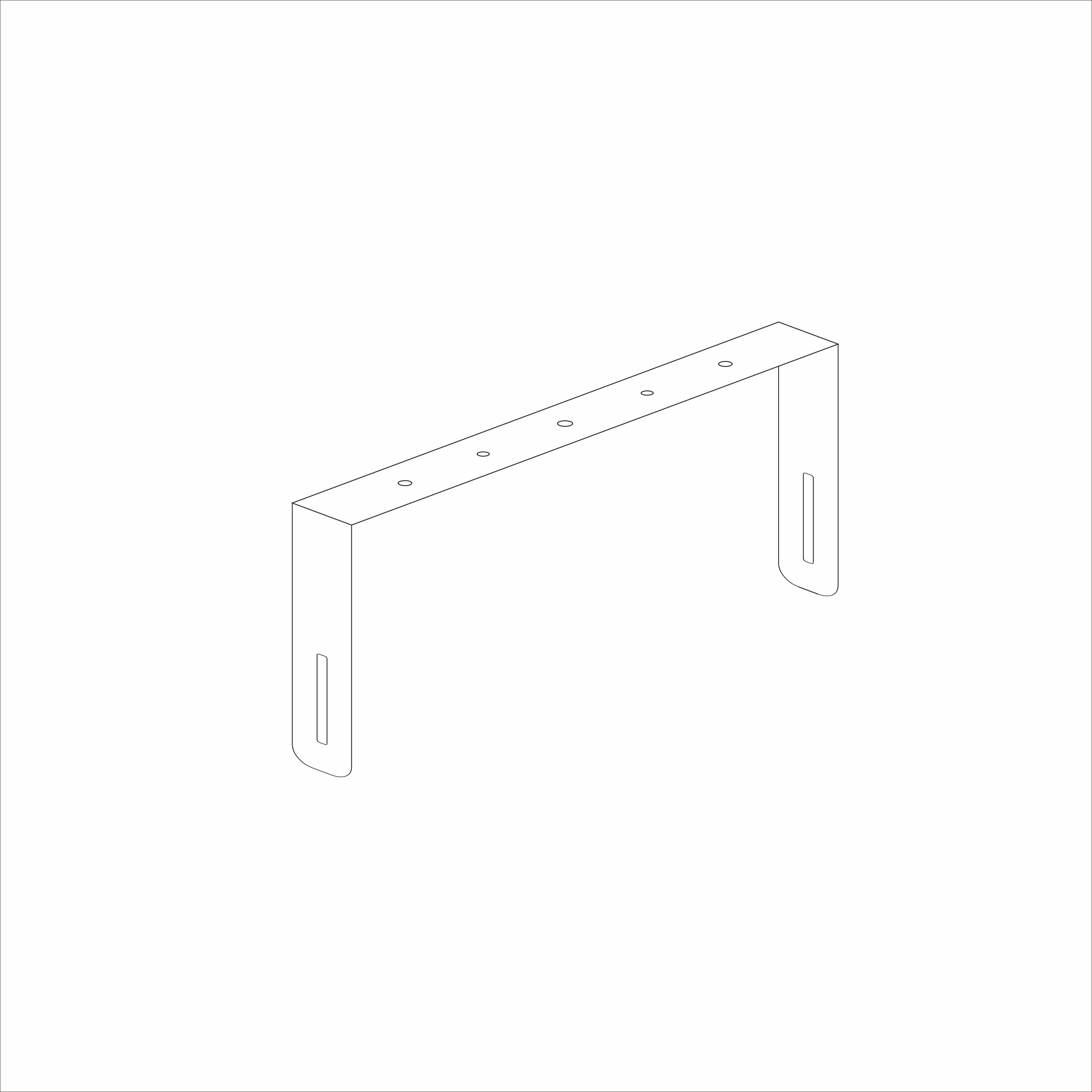

Rigging 5DS-UL U-shaped
Physical Data
Material Baltic Birch Plywood
Finish Dark Grey
Front Polyester powder-coated steel grill
Rigging Steel
Protection rating IP55
5DS-UL Suitable for 5DS enclosures
Lighting Hook Suitable for connecting UL/ULi hangers
Floor stand Adjustable height,3/8 threaded insert
GU20 Wall frame Suitable for install wall Horizontal:-90°~+90° Vertical:-5°~+30° Weight bearing:20kg Dimensions:65 x 100 x 75mm (W x H x D)
UP15A Top wall-Vertical Suitable for install Top wall Horizontal:360° Vertical:-70°~+70° Weight bearing:15kg
UP15B Top wall-Horizontal Suitable for install Top wall Horizontal:360° Vertical:-70°~+70° Weight bearing:15kg
VDA12 16Ω:4 x 600W RMS 8Ω:4 x 1200W RMS 4Ω/2.7Ω:4 x 2000W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%,50-60 Hz
VDA4 16Ω:4 x 200W RMS 8Ω:4 x 400W RMS 4Ω/2.7Ω:4 x800W RMS 32-bit 96kHz sampling rate 4 x 4 matrix architecture 2x20 LCD Display、1 x RJ45 Network 100 V - 240 V ~ ±10%,50-60 Hz
2-Pin 2*2.5㎡ NL4 Speaker Cables 1、2Pin-NL4-5(5meter) 3、2Pin-NL4-10(10meter) 3、2Pin-NL4-15(15meter) 4、2Pin-NL4-25(25meter)
5DS_SYSTEM_CAD_FILES Download
5DS Data_PI_EN Download
