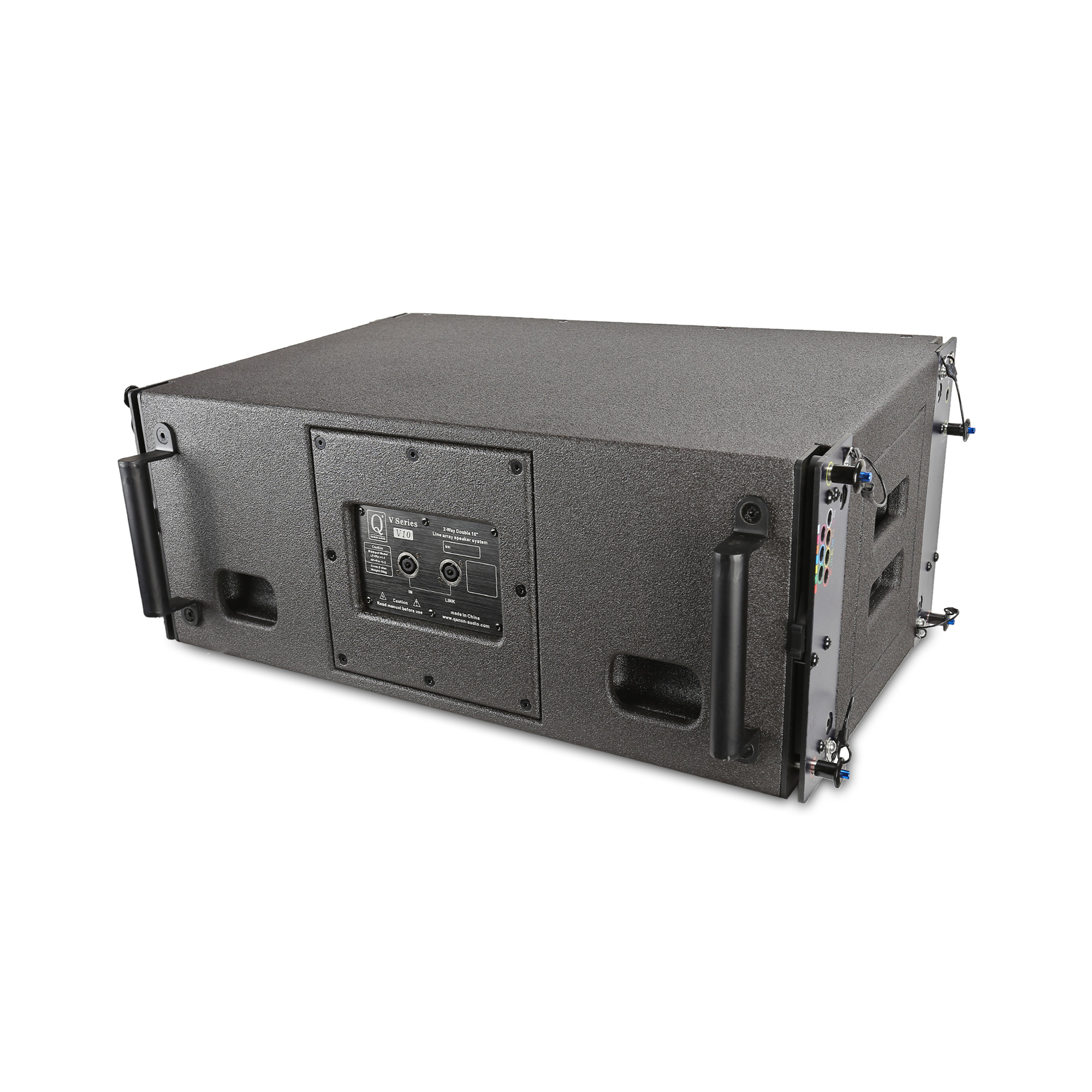

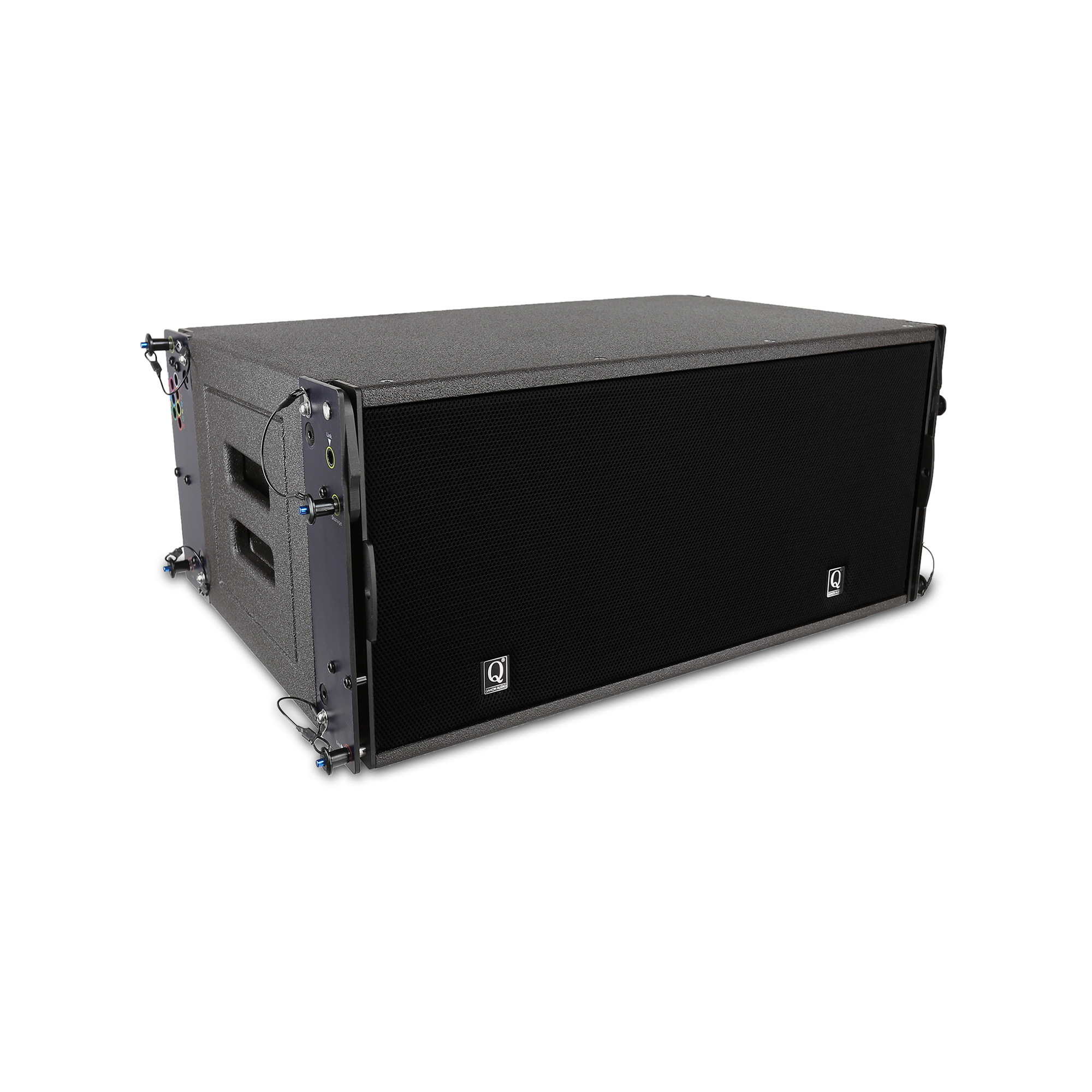

Type 2-way Bi-amp line source enclosure
Frequency Response(Preset) 50Hz-20kHz
Amplifier Recommend VDA18 / VDA14 / C18 / C15
Preset [V10] FOH / [V10] FI / [V10] Stack
Horizontal 100°
Angle Increments 0° 1° 2° 3° 4° 5° 6°
Drivers LF:2×10" 65mm Voice Coil Neodymium
HF:2×3" 75mm Voice Coil Neodymium
Handling Power (RMS) LF:500W
HF:220W
Maximum Peak SPL 141dB/1m
Nominal Impedance LF:8Ω / HF:8Ω
Connections 2 x NL4 SpeakOn
Pin Connections NL4=LF:+1-1 HF:+2-2
Height Front 310mm
Height Back 263mm
Width 700mm
Depth 450mm
Weight 33kg / 72.7lbs
Rigging and Handling
Handle 6 ergonomic handles
Antiskid N/C
Fastener 4 side fastener
Physical Data
Material Baltic Birch Plywood
Finish Dark grey
Front Polyester powder-coated steel grill
Rigging Steel
Protection rating IP55
V10/V18-Bump Suitable for V10/V18 enclosures
Laser+Receiver Adopting high-precision digital sensor+20mw point far-field fixed focus coaxial laser
V15DF V310/V10 Convert Bump Suitable for V310/V10 enclosures, DownFill for V15/V12
V10/V18-Bump Flight Case Accommodate 2 Bump and hanging equipment accessories
U-shaped shackle 3.25t 5/8 U-shaped shackles connect to Bump-Bar
Spanset 2T/2m spanset used for connect shackles, used for front and rear

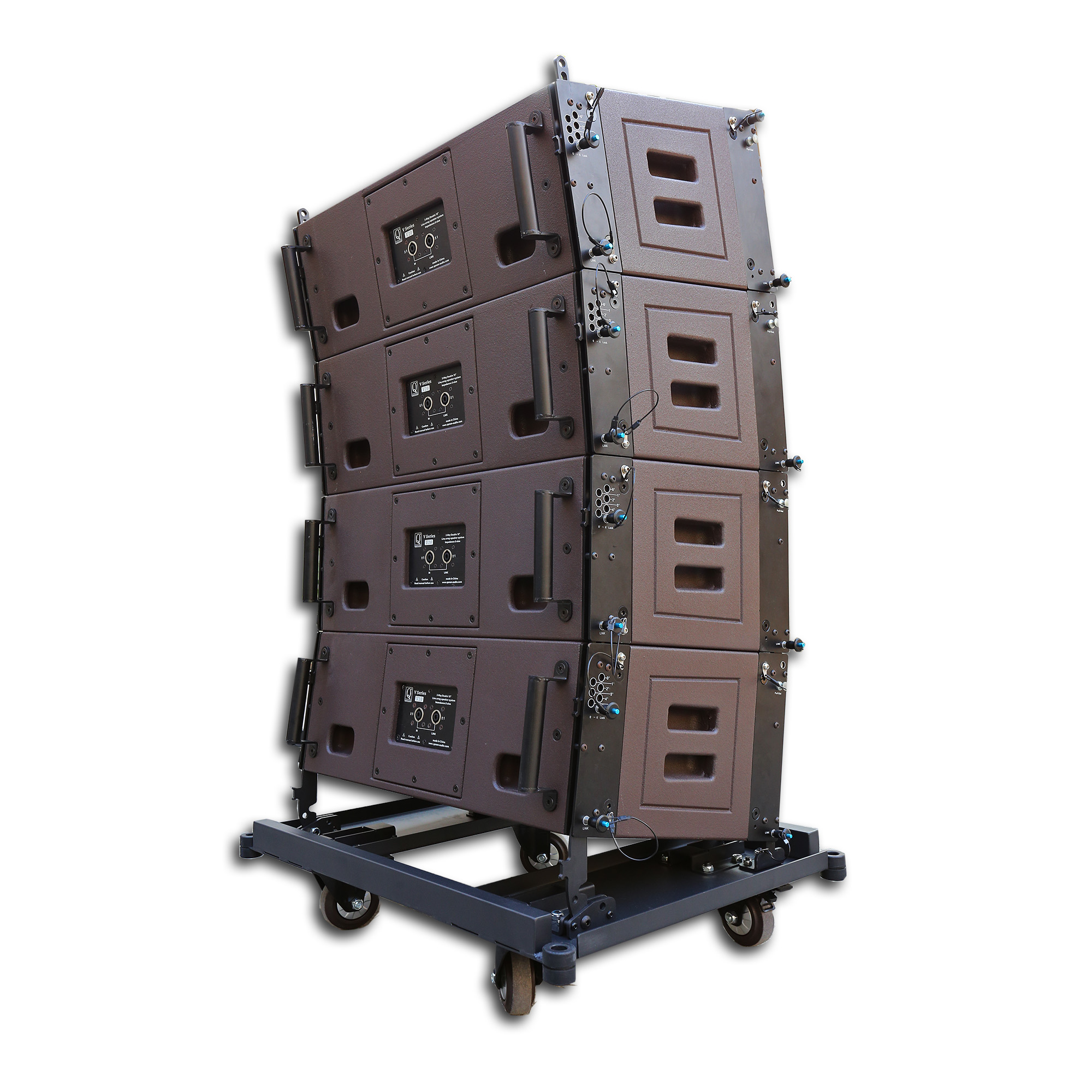

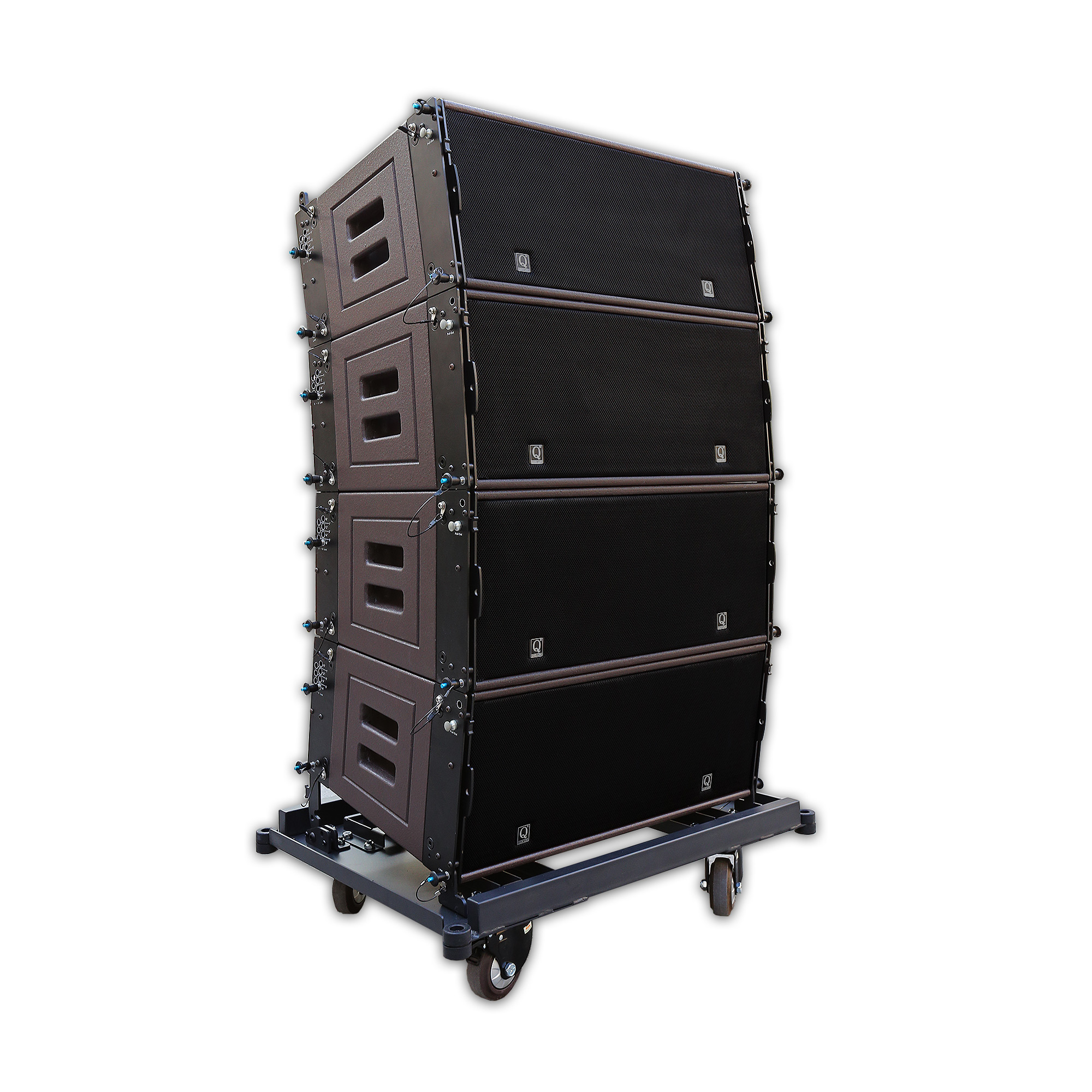

V10-Trolley The trolley can accommodate 4 stacked V10 enclosures, combined with a hanging rigging system
V10-Cover Cover for 4x V10 enclosures stacked on V10 Trolley
V10 Touring Flight Case Accommodate 2 V10 Dimensions(W x H x D):835 x 855 x 590mm
V10/V18 Stack-Cover 4 V10 2 V18
V10/V18 Rigging-Cover 1、4-6 V10(2m)length 2、8 V10(2.6m)length 3、12 V10(4m)length
VDA18-Rack 9U rack mounted with 3 VDA18 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution
VDA18-Rack1 3U rack mounted with 1 VDA18 amplifiers, and 1 SCN Signal panel
VDA14-Rack 9U rack mounted with 3 VDA14 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution
VDA14-Rack1 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel
VDA14-Rack2 DS1/DS3 6U rack mounted with 2 VDA14 amplifiers, Qanon Audio DS1 Single-Phase / DS3 Three-Phase Power distribution
C15-Rack2 DS1/DS3 6U rack mounted with 2 C15 amplifiers、1 DF36 Audio Processor, Qanon Audio DS1 Single-Phase / DS3 Three-Phase Power distribution
4-Pin 4*4㎡ NL4 Speaker Cables 1、4Pin-NL4-0.7(0.7meter) 2、4Pin-NL4-10(10meter) 3、4Pin-NL4-15(15meter) 4、4Pin-NL4-25(25meter)
8-Pin 8*4㎡ PA-COM Speaker Cables 1、PA-COM-0.7(0.7meter) 2、PA-COM-10(10meter) 3、PA-COM-15(15meter) 4、PA-COM-25(25meter)
8-Pin PA-COM Male without locking to 2ch NL4(ch1、ch3)Wiring:+1-1+2-2 2meter / 4ch
