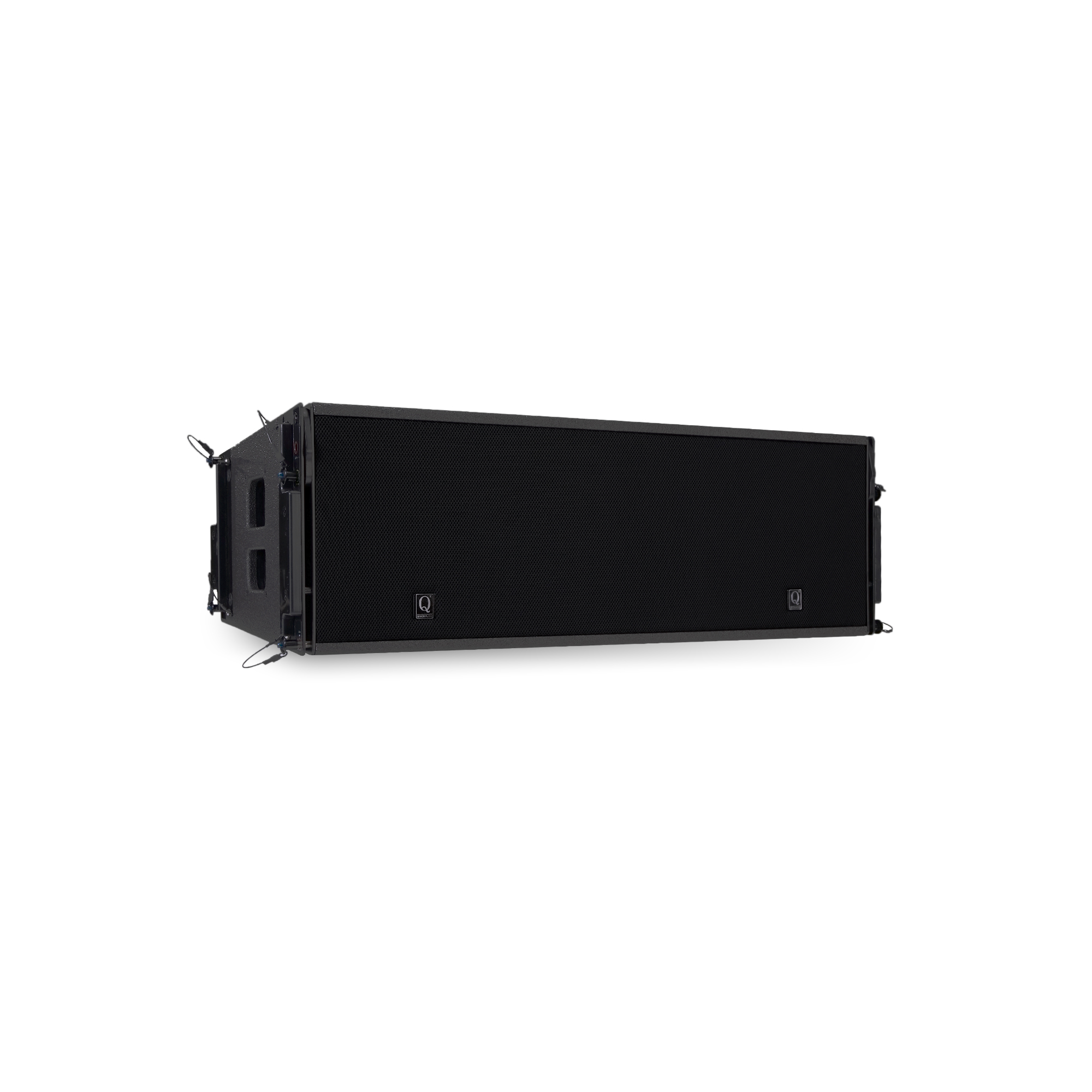

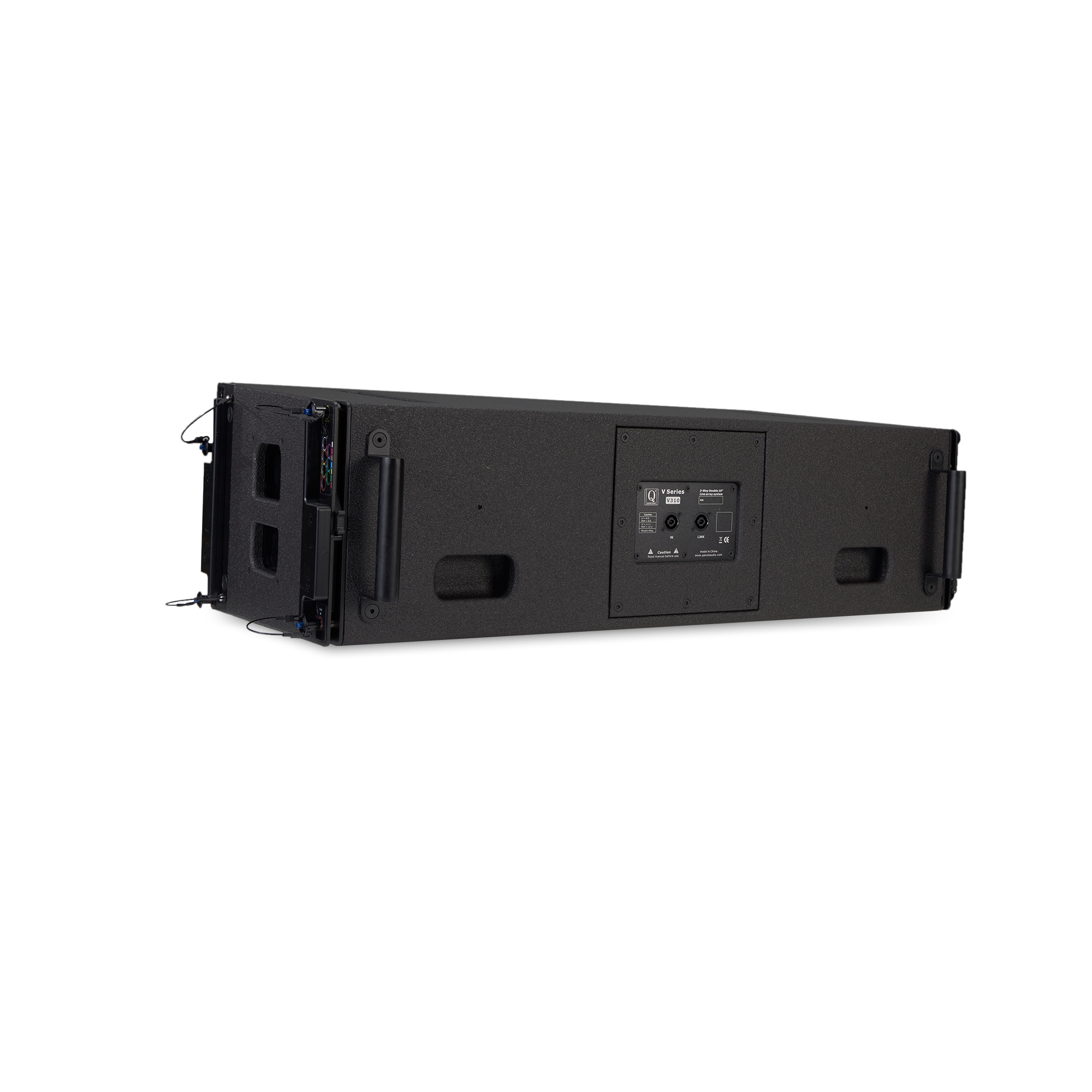

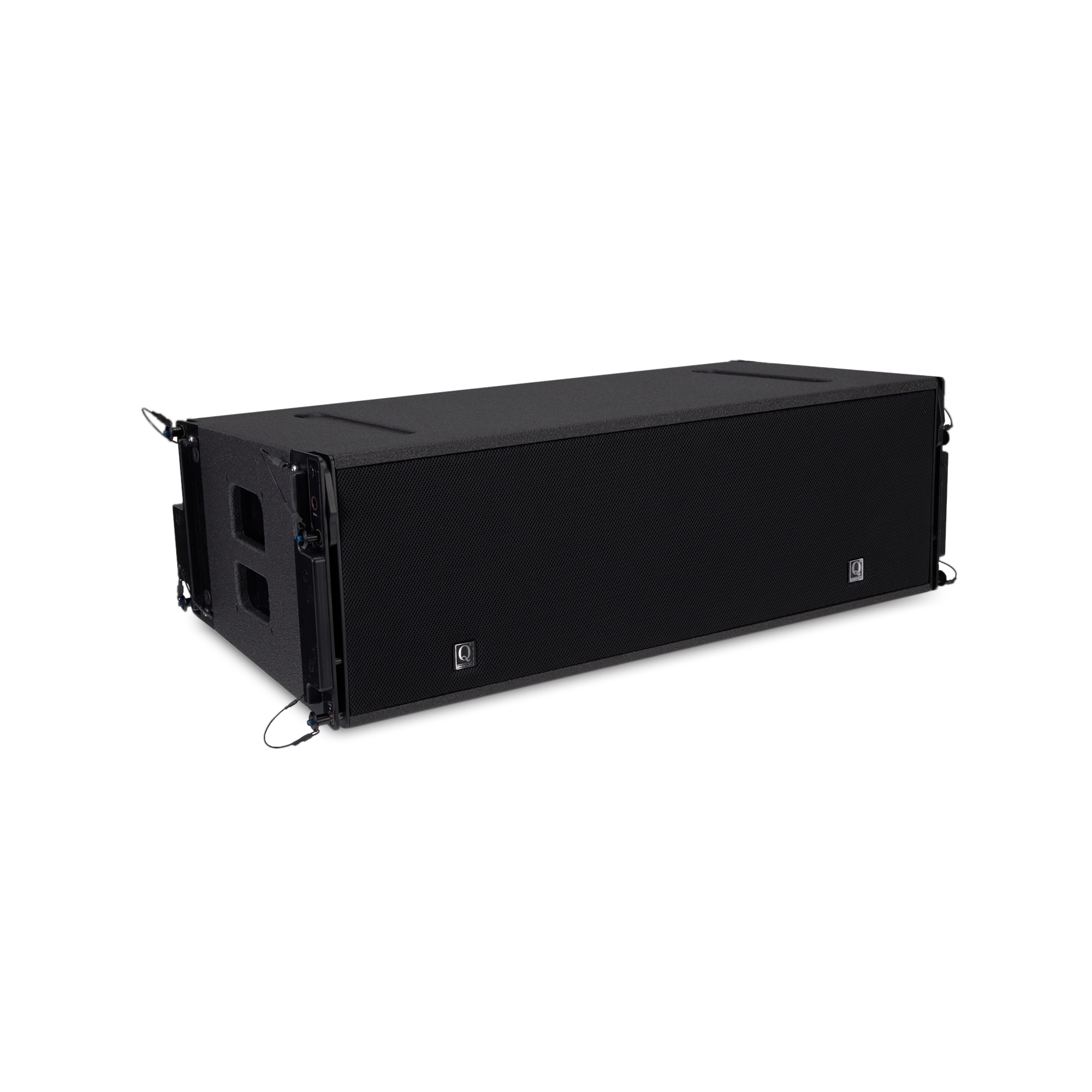

| Type | 3-way Bi-amp line source enclosure |
| Frequency Response | 50Hz-20kHz |
| Amplifier Recommend | VDA18 / VDA14 / C18 / C15 |
| Preset | [V310] FOH / [V310] FI / [V310] Stack |
| Horizontal | 100° |
| Angle Increments | 0° 1° 2° 3° 4° 5° 6° |
| Drivers | LF:2×10" 75mm Voice Coil Neodymium |
| MF:4×5" 38mm Voice Coil Neodymium | |
| HF:2×3" 75mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF:800W |
| MF:320W | |
| HF:220W | |
| Maximum Peak SPL | 143dB/1m |
| Nominal Impedance | LF:8Ω / MHF:8Ω |
| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 MHF:+2-2 |
| Height Front | 310mm |
| Height Back | 263mm |
| Width | 950mm |
| Depth | 450mm |
| Weight | 46kg / 101.4lbs |
| Rigging and Handling | |
| Handle | 6 ergonomic handles |
| Antiskid | 2 ground runners |
| Fastener | 4 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
V310/V310S Bump-Bar | Suitable for V310/V310S enclosures, with extend Bar |
 |
Laser+Receiver | Adopting high-precision digital sensor+20mw point far-field fixed focus coaxial laser |
 |
V310/V310S Bump-Bar Flight Case | Accommodate 2 Bump / 2 Bar, and hanging equipment accessories |
 |
U-shaped shackle | 3.25t 5/8 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 2T/2m spanset used for connect shackles, used for front and rear |
 |
V310-Trolley | The trolley can accommodate 4 stacked V310 enclosures, combined with a hanging rigging system |
 |
V310-Cover | Cover for 4x V310 enclosures stacked on V310 Trolley |
 |

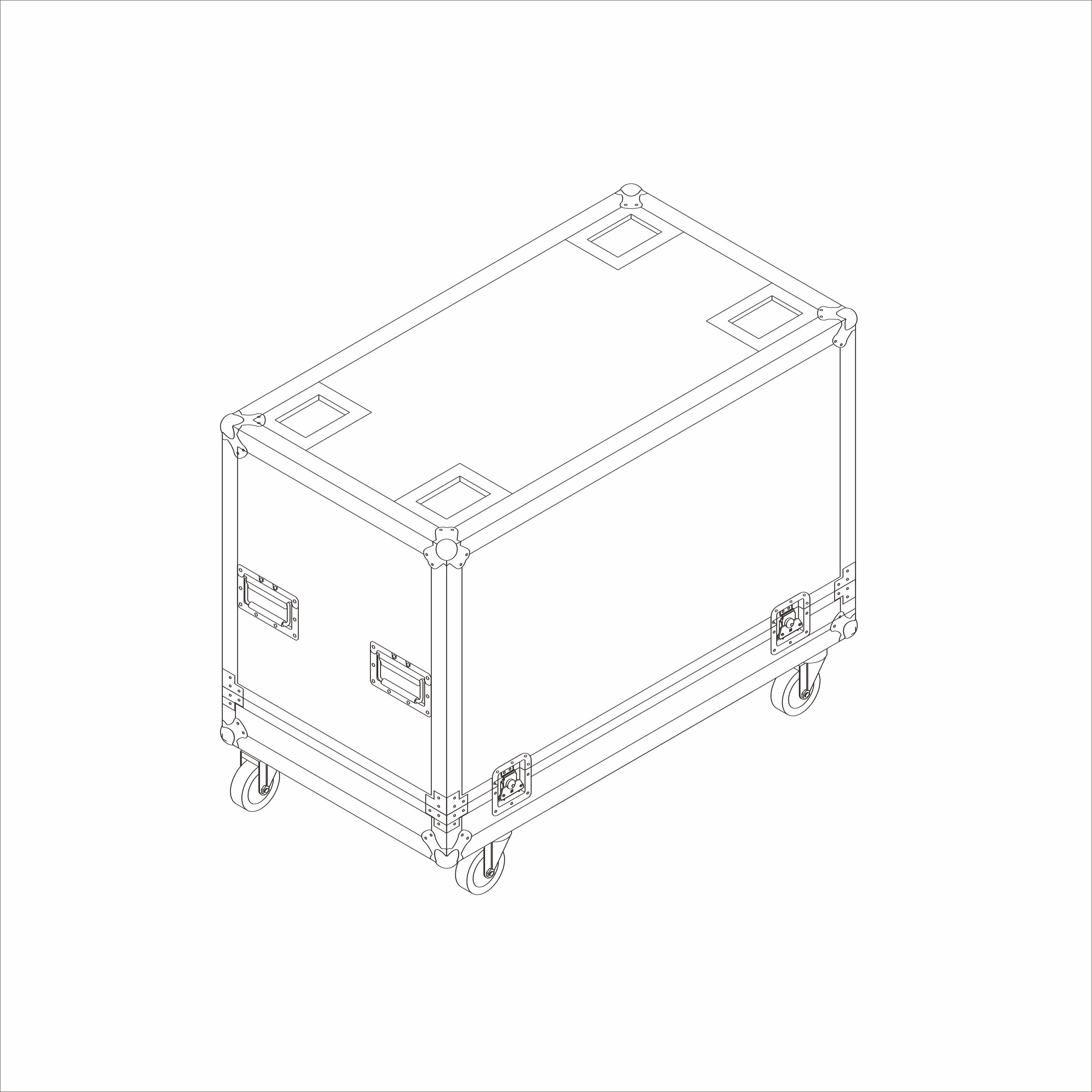

V310 Touring Flight Case | Accommodate 2 V310 Dimensions（W x H x D）：1075 x 855 x 590mm |
 |
V310/V310S Stack-Cover | 4 V310 2 V310S |
 |
V310 Rigging-Cover | 1、4-6 V310（2m）length 2、8 V310（2.6m）length 3、12 V310（4m）length |
 |
V310S Rigging-Cover | 1、6 V310S（4m）length |
 |
VDA18-Rack | 9U rack mounted with 3 VDA18 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution |
 |
VDA14-Rack | 9U rack mounted with 3 VDA14 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution |
 |
VDA14-Rack2 DS1/DS3 | 6U rack mounted with 2 VDA14 amplifiers, Qanon Audio DS1 Single-Phase / DS3 Three-Phase Power distribution |
 |
4-Pin 4*4㎡ NL4 Speaker Cables | 1、4Pin-NL4-0.7（0.7meter） 2、4Pin-NL4-10（10meter） 3、4Pin-NL4-15（15meter） 4、4Pin-NL4-25（25meter） |
 |
8-Pin 8*4㎡ PA-COM Speaker Cables | 1、PA-COM-0.7（0.7meter） 2、PA-COM-10（10meter） 3、PA-COM-15（15meter） 4、PA-COM-25（25meter） |
 |
8-Pin PA-COM Male without locking to 2ch NL4（ch1、ch3）Wiring：+1-1+2-2 | 2meter / 4ch |
