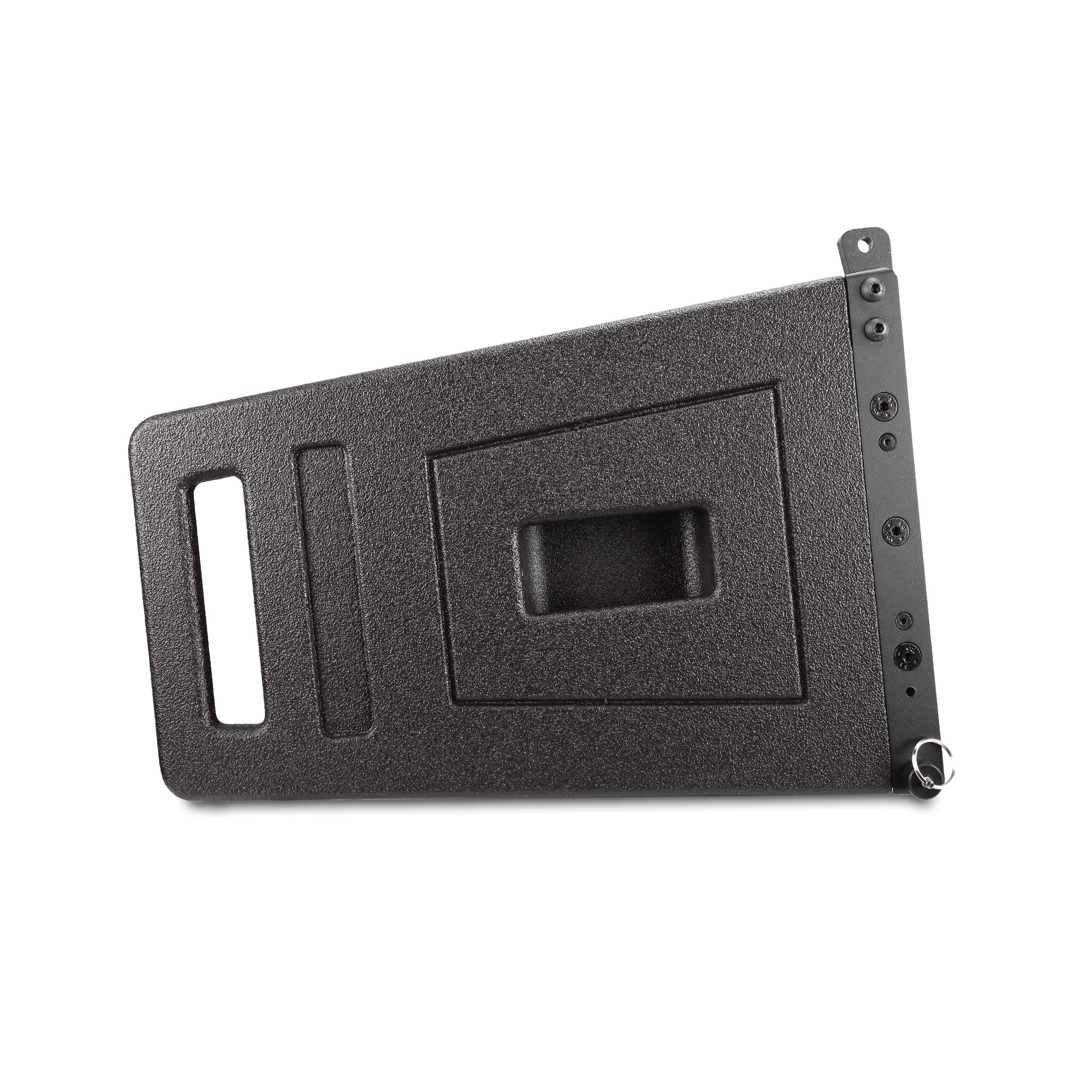

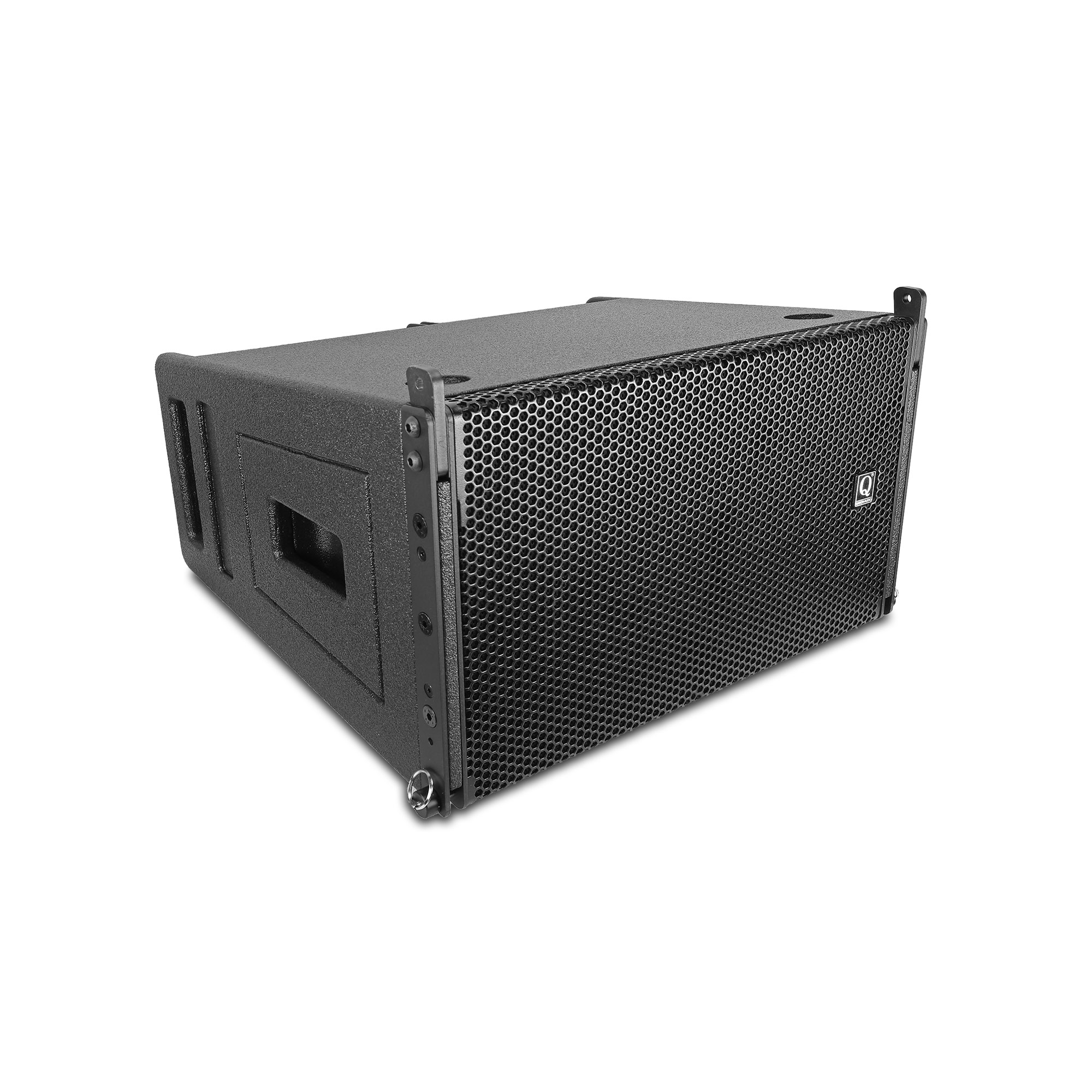

Type | 2-way Bi-amp Line Source enclosure |
Frequency Response(Preset) | 60Hz-20kHz |
Amplifier Recommend | VDA14 / VDA12 |
Preset | [X10] FOH / [X10] FI / [X10] Stack |
Horizontal | 100° |
Angle Increments | 0° 2° 4° 6° 8° 10° 12° |
Drivers | LF:1×10" 65mm Voice Coil Neodymium |
HF:1×3" 75mm Voice Coil Neodymium | |
Handling Power (RMS) | LF:200W |
HF:110W | |
Maximum Peak SPL | 137dB/1m |
Nominal Impedance | LF:16Ω / HF:16Ω |

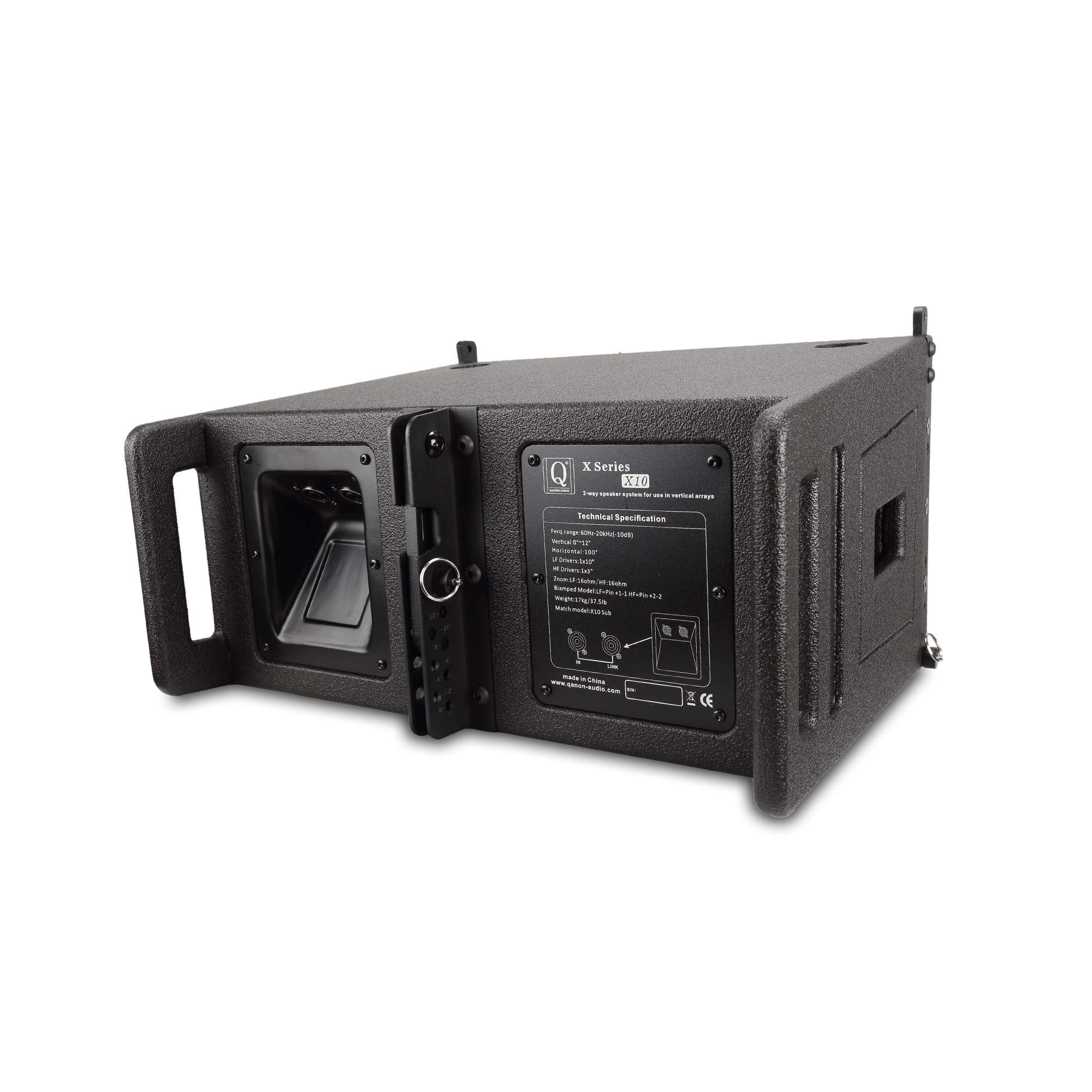

Connections | 2 x NL4 SpeakOn |
Pin Connections | NL4=LF:+1-1 HF:+2-2 |
Height Front | 300mm |
Height Back | 220mm |
Width | 500mm |
Depth | 380mm/440mm |
Weight | 17kg / 37.5lbs |
Rigging and Handling | |
Handle | 4 ergonomic handles |
Antiskid | N/C |
Fastener | 3 side fastener |
Physical Data | |
Material | Baltic Birch Plywood |
Finish | Dark Grey |
Front | Polyester powder-coated steel grill |
Rigging | Steel |
Protection rating | IP55 |
![]() |
X10-Bump | Suitable for X10 enclosures |
![]() |
X10/X10Sub-Bump | Suitable for X10/X10Sub enclosures |
![]() |

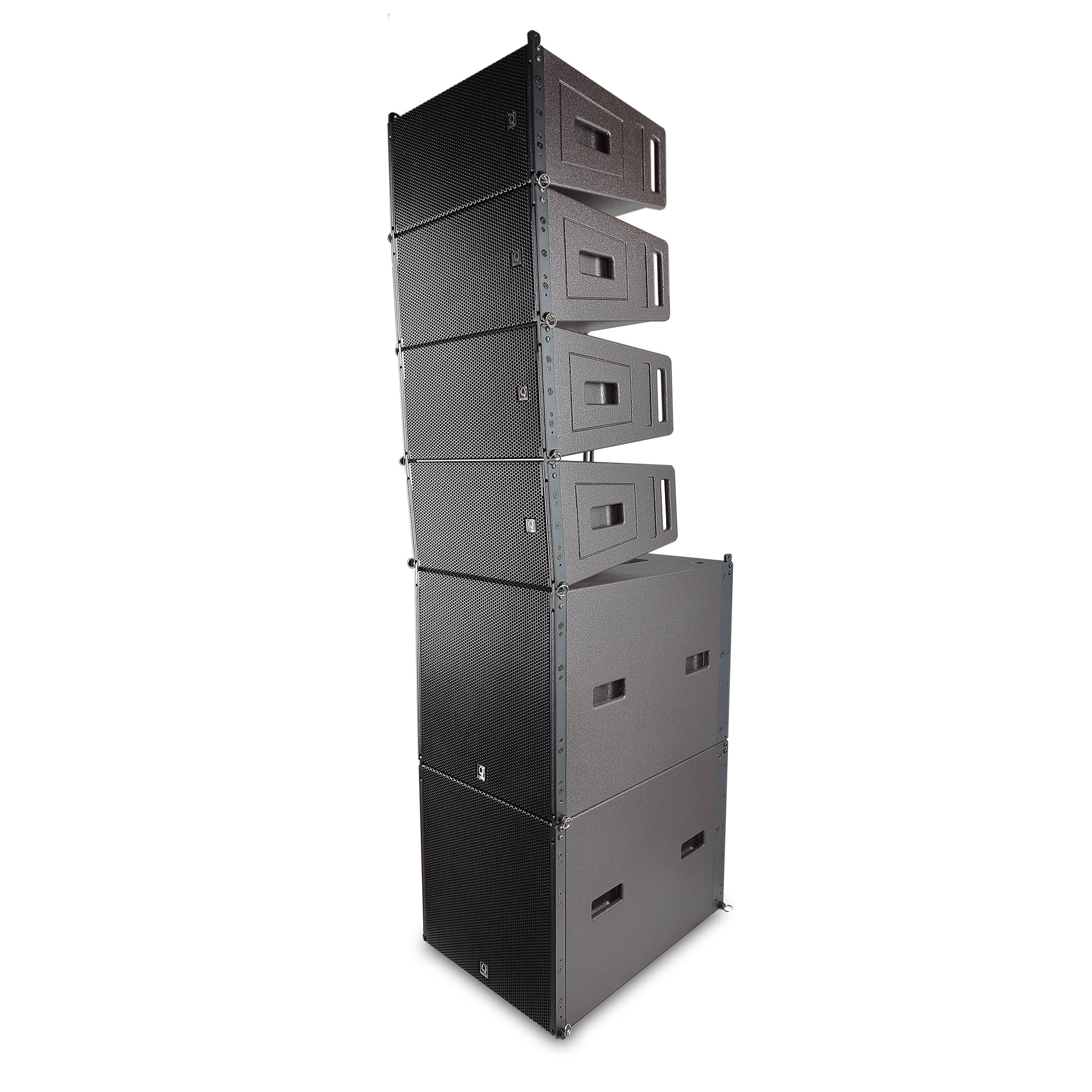

Suitable for X10/X10Sub enclosures | Suitable for stacking and connecting with X10 enclosures Adjustable from 0 °/ 6 ° |
![]() |
U-shaped shackle | 2t 1/2 U-shaped shackles connect to Bump-Bar |
![]() |
Spanset | 1T/1m spanset used for connect shackles, used for front and rear |
![]() |
X10 Touring Flight Case | Accommodate 2 X10 Dimensions(W x H x D):615 x 840 x 505mm |
![]() |
X10 Touring Flight Case | Accommodate 4 X10 Dimensions(W x H x D):935 x 840 x 615mm |
![]() |
X10/X10Sub Stack-Cover | 4 X10 2 X10Sub |
![]() |
X10 Rigging-Cover | 1、4-6 X10(2m)length 2、8 X10(2.5m)length |
![]() |
X10/X10Sub Rigging-Cover | 1、8 X10 or 4 X10Sub(2.5m)length |
![]() |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
![]() |
2-Pin 2*2.5㎡ NL4 Speaker Cables | 1、4Pin-NL4-0.5(0.5meter) 3、4Pin-NL4-10(10meter) 3、4Pin-NL4-15(15meter) 4、4Pin-NL4-25(25meter) |
