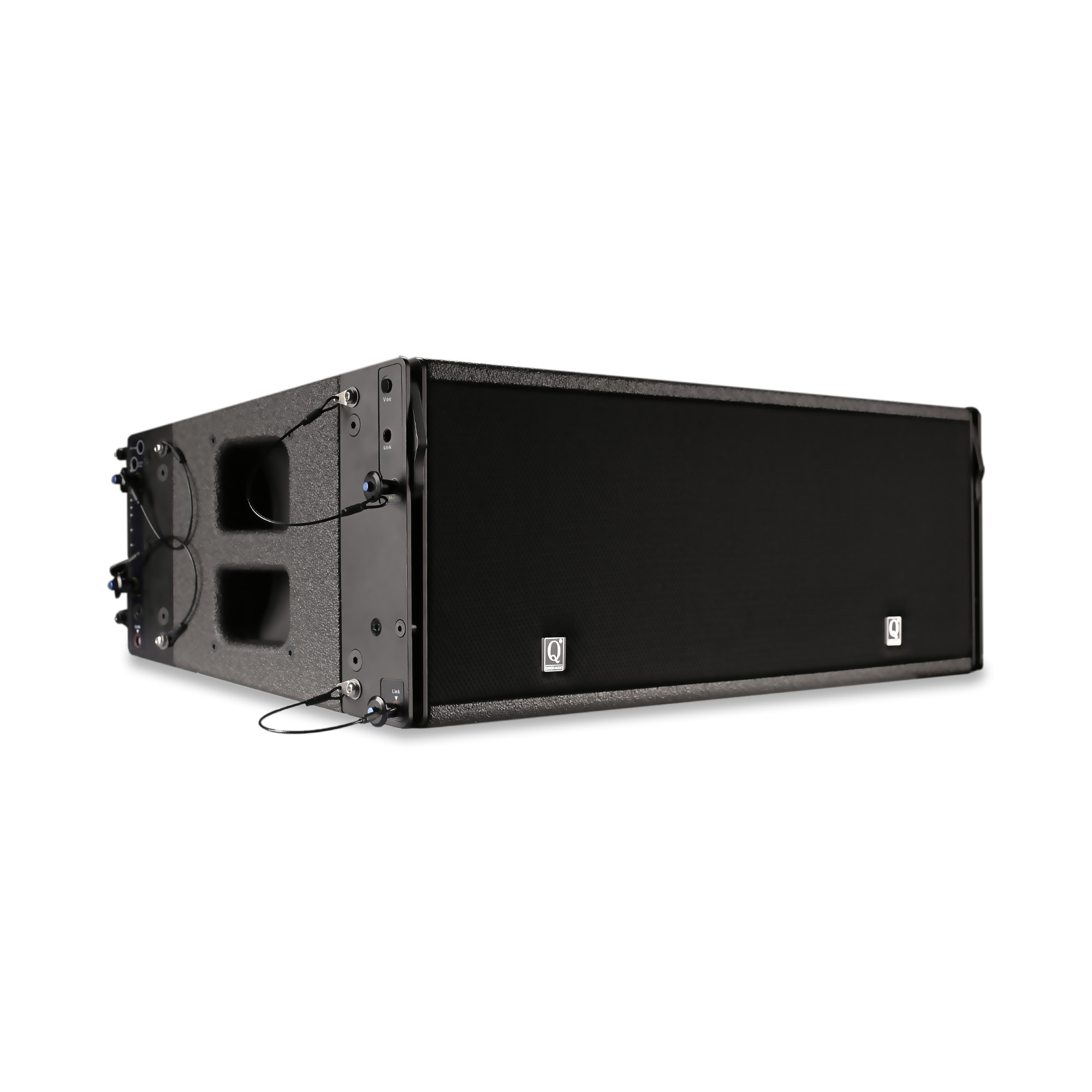

Type 2-way line Array enclosure
Frequency Response 60Hz-20kHz
Amplifier Recommend VDA18 / VDA14 / VDA12 / C15
Preset [Voe] FOH / [Voe] FI / [Voe] Stack
Horizontal 100°
Angle Increments 0° 1° 2° 3° 4° 5° 6° 8° 10°
Drivers LF:2×8" 65mm Voice Coil Neodymium
HF:1×3" 75mm Voice Coil Neodymium
Handling Power (RMS) LF:400W
HF:110W
Maximum Peak SPL 140dB/1m
Nominal Impedance LF：8Ω / HF：16Ω
Connections 2 x NL4 SpeakOn
Pin Connections IN = LF:+1-1 / HF:+2-2
LINK = LF:+1-1 / HF:+2-2
Height Front 260mm
Height Back 190mm
Width 700mm
Depth 400mm
Weight 26kg / 57.3lbs
Rigging and Handling
Handle 4 ergonomic handles
Antiskid N/C
Fastener 4 side fastener
Physical Data
Material Baltic Birch Plywood
Finish Dark Grey
Front Polyester powder-coated steel grill
Rigging Steel
Protection rating IP55
Voe/VoeL-Bump Suitable for Voe/VoeL enclosures
V15DF Voe Convert Bump Suitable for Voe enclosures, DownFill for V15/V12
Veya DF Voe Convert Bump Suitable for Voe enclosures, DownFill for Veya
Voe/VoeL-Bump Flight Case Accommodate 2 Bump and hanging equipment accessories
U-shaped shackle 3.25t 5/8 U-shaped shackles connect to Bump-Bar
Spanset 2T/2m spanset used for connect shackles, used for front and rear
Voe-Trolley The trolley can accommodate 4 stacked Voe enclosures, combined with a hanging rigging system
Voe-Cover Cover for 4x Voe enclosures stacked on Voe Trolley
Voe Touring Flight Case Accommodate 2 Voe Dimensions（W x H x D）：835 x 730 x 510mm
Voe Touring Flight Case Accommodate 3 Voe Dimensions（W x H x D）：835 x 990 x 590mm
Voe/VoeL Stack-Cover 4 Voe 2 VoeL
Voe/VoeL Rigging-Cover 1、4-6 Voe（2.5m）length 2、8 Voe（3m）length 3、12 Voe（3.5m）length
VDA18-Rack 9U rack mounted with 3 VDA18 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution
VDA18-Rack1 3U rack mounted with 1 VDA18 amplifiers, and 1 SCN Signal panel
VDA14-Rack 9U rack mounted with 3 VDA14 amplifiers, Qanon Audio V-panel Signal panel and V-PowerII distribution
VDA14-Rack1 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel
VDA14-Rack2 DS1/DS3 6U rack mounted with 2 VDA14 amplifiers, Qanon Audio DS1 Single-Phase / DS3 Three-Phase Power distribution
C15-Rack2 DS1/DS3 6U rack mounted with 2 C15 amplifiers、1 DF36 Audio Processor, Qanon Audio DS1 Single-Phase / DS3 Three-Phase Power distribution
4-Pin 4*4㎡ NL4 Speaker Cables 1、4Pin-NL4-0.7（0.7meter） 2、4Pin-NL4-10（10meter） 3、4Pin-NL4-15（15meter） 4、4Pin-NL4-25（25meter）
8-Pin 8*4㎡ PA-COM Speaker Cables 1、PA-COM-0.7（0.7meter） 2、PA-COM-10（10meter） 3、PA-COM-15（15meter） 4、PA-COM-25（25meter）
8-Pin PA-COM Male without locking to 2ch NL4（ch1、ch3）Wiring：+1-1+2-2 2meter / 4ch
Laser+Receiver Adopting high-precision digital sensor+20mw point far-field fixed focus coaxial laser
