| Type | 2-way active Line Source enclosure |
| Frequency Response(Preset) | 70Hz-20kHz |
| Amplifier Recommend | VDA14 / VDA12 |
| Preset | [X8] FOH / [X8] FI / [X8] Stack |
| Horizontal | 100° |
| Angle Increments | 0° 2° 4° 6° 8° 10° 12° |
| Drivers | LF:1×8" 65mm Voice Coil Neodymium |
| HF:1×1.75" 44mm Voice Coil Neodymium | |
| Handling Power (RMS) | LF:200W |
| HF:60W | |
| Maximum Peak SPL | 131dB/1m |
| Nominal Impedance | LF:16Ω / HF:16Ω |
| Connections | 2 x NL4 SpeakOn |
| Pin Connections | NL4=LF:+1-1 HF:+2-2 |
| Height Front | 275mm |
| Height Back | 212mm |
| Width | 430mm |
| Depth | 300mm/360mm |
| Weight | 14kg / 30.8lbs |
| Rigging and Handling | |
| Handle | 4 ergonomic handles |
| Antiskid | N/C |
| Fastener | 3 side fastener |
| Physical Data | |
| Material | Baltic Birch Plywood |
| Finish | Dark Grey |
| Front | Polyester powder-coated steel grill |
| Rigging | Steel |
| Protection rating | IP55 |
 |
X8-Bump | Suitable for X8 enclosures |
|
X8/X8Sub-Bump | Suitable for X8/X8Sub enclosures |
 |

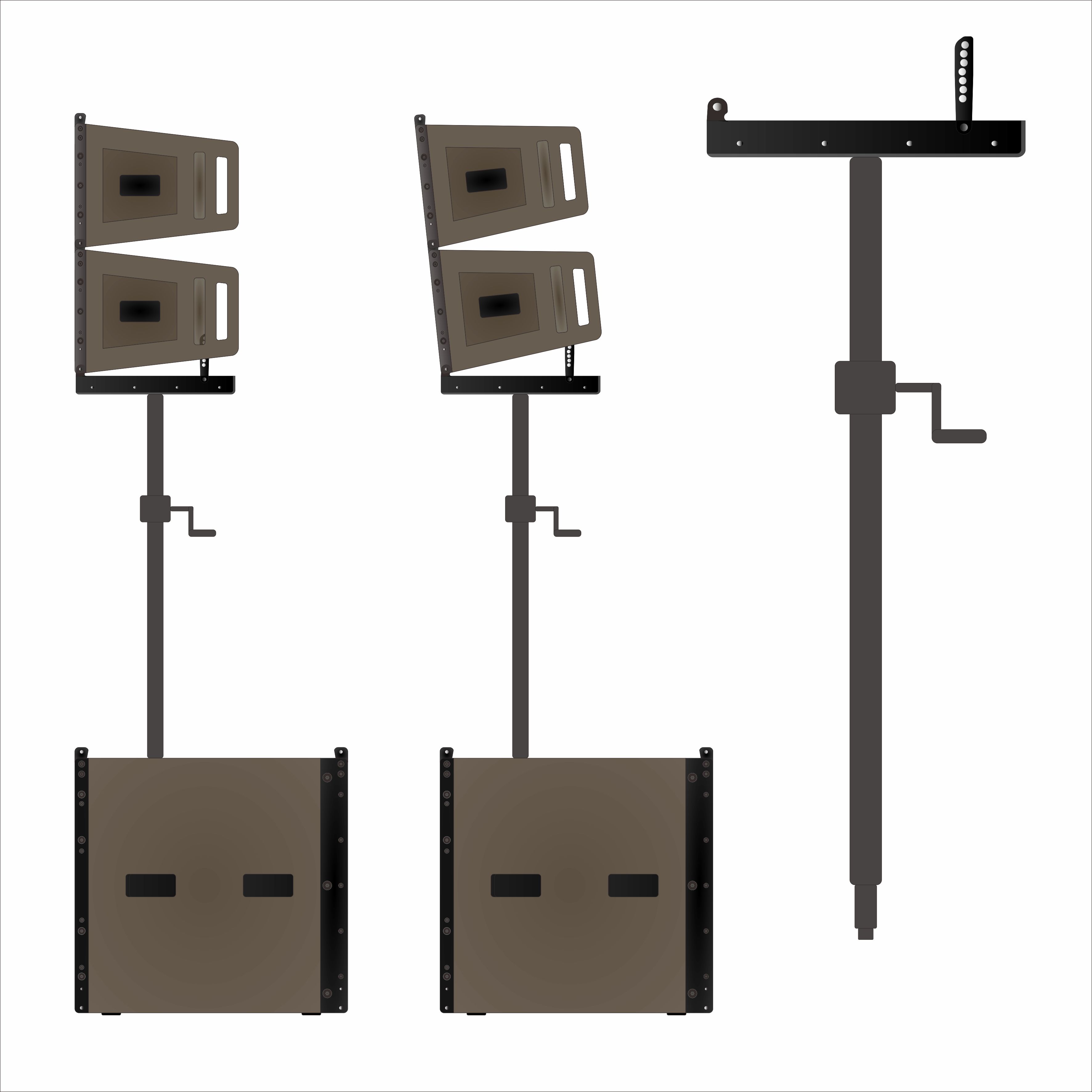

X8 Stand-Bar | Suitable for stacking and connecting with X8 enclosures Adjustable from 0 °,2 ° ,4 °,6 ° |
 |
U-shaped shackle | 2t 1/2 U-shaped shackles connect to Bump-Bar |
 |
Spanset | 1T/1m spanset used for connect shackles, used for front and rear |
 |

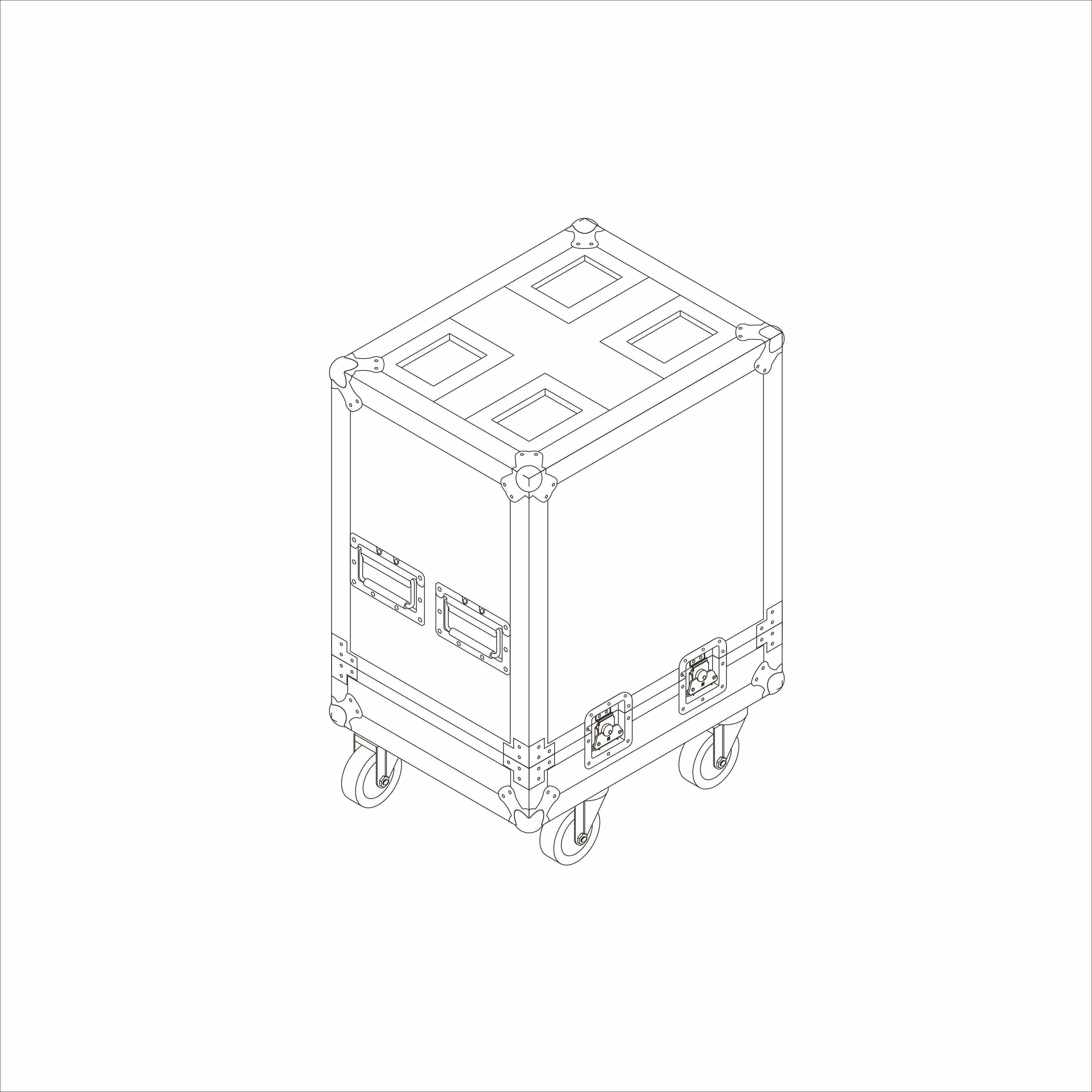

X8 Touring Flight Case | Accommodate 2 X8 Dimensions（W x H x D）：545 x 790 x 425mm |
 |

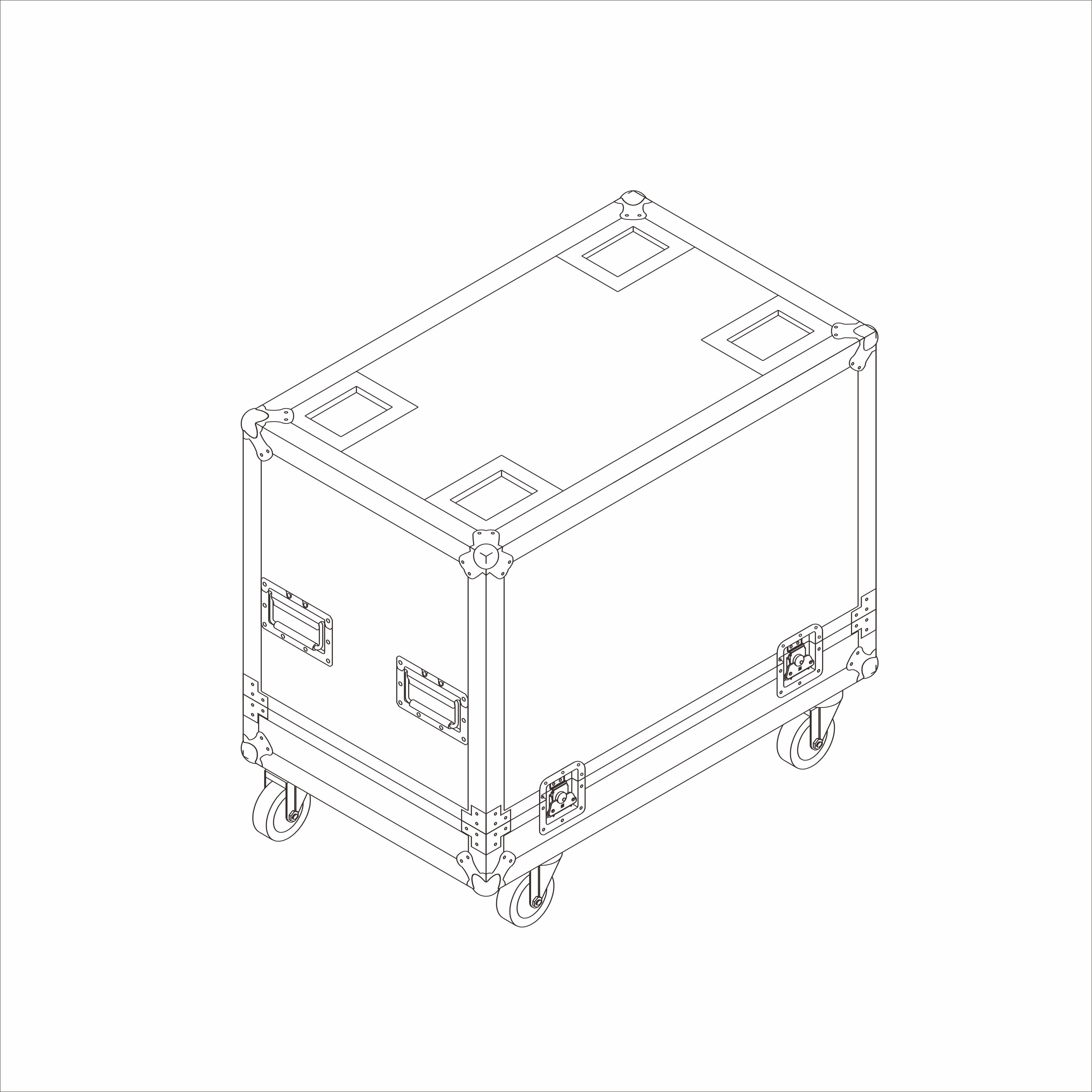

X8 Touring Flight Case | Accommodate 4 X8 Dimensions（W x H x D）：875 x 790 x 545mm |
 |
X8/X8Sub Stack-Cover | 4 X8 2 X8Sub |
 |
X8 Rigging-Cover | 1、4-6 X8（2m）length 2、8 X8（2.5m）length |
|
X8/X8Sub Rigging-Cover | 1、8 X8 or 4 X8Sub（2.5m）length |
 |
VDA14-Rack1 | 3U rack mounted with 1 VDA14 amplifiers, and 1 SCN Signal panel |
 |
2-Pin 2*2.5㎡ NL4 Speaker Cables | 1、4Pin-NL4-0.5（0.5meter） 3、4Pin-NL4-10（10meter） 3、4Pin-NL4-15（15meter） 4、4Pin-NL4-25（25meter） |
